High-Performance Wide-Beam Chirp Transducer for Superior Marine Coverage

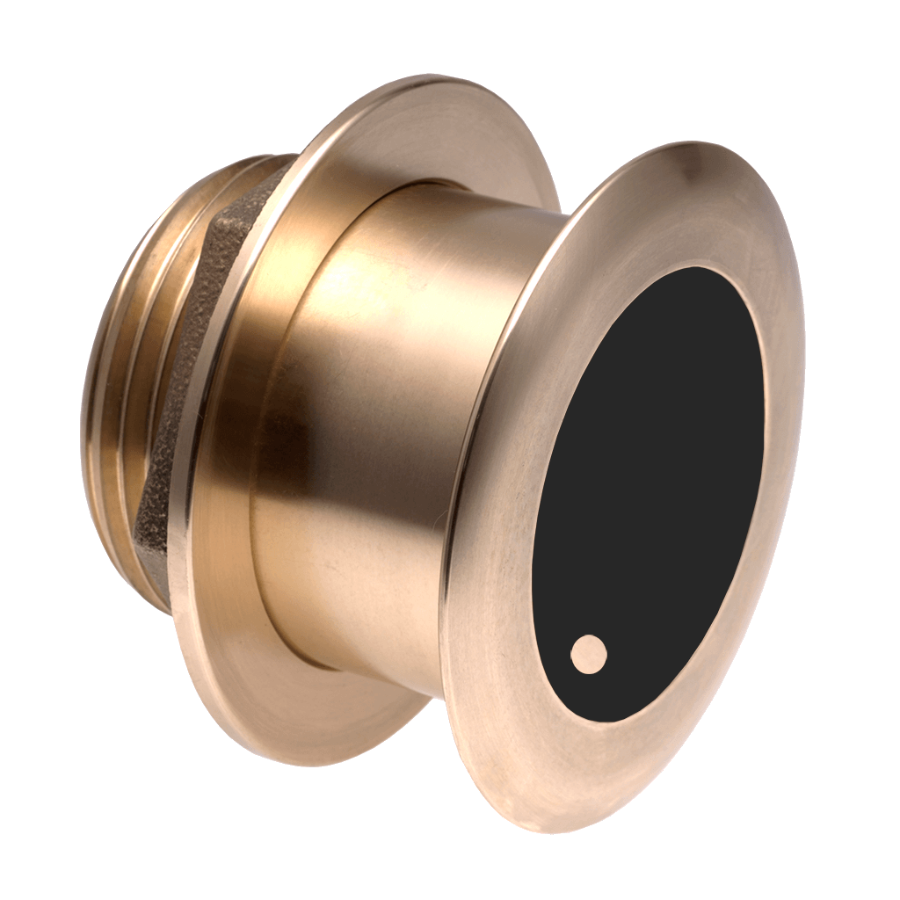

The Airmar B175C-20-HW transducer is designed for anglers and marine professionals seeking unparalleled bottom coverage and precise fish detection. With its wide-beam CHIRP technology, this transducer operates within a high-frequency range of 150-250 kHz, ensuring clear and detailed sonar imaging. Whether installed on fiberglass or wooden hulls, the B175C-20-HW delivers optimal performance for boats measuring 8 meters (25 feet) and above.

Unlike traditional narrow-beam transducers, this model offers a consistent 25° beam width across the entire frequency band. This ensures broader underwater coverage, making it easier to detect fish throughout the water column. The B175C-20-HW also enhances echosounder performance, producing larger and crisper return images on display screens for improved target identification.

Equipped with a powerful 1 kW rating and a fast-response water-temperature sensor, this transducer is a reliable choice for serious marine applications. Whether navigating coastal waters or deep-sea fishing, the Airmar B175C-20-HW provides unmatched clarity and accuracy beneath the surface.

Technical Specifications

• Depth & Temperature Sensor: Integrated for real-time water-temperature readings
• Frequency Range: 150 kHz to 250 kHz (CHIRP broadband)
• Beam Width: Constant 25° for increased bottom coverage
• Total Bandwidth: 100 kHz for enhanced sonar imaging
• Power Rating: 1 kW at 1% duty cycle
• Acoustic Window Material: Urethane
• Deadrise Compatibility: 16° to 24° for effective hull mounting
• Hull Type Compatibility: Fiberglass or wood
• Recommended Boat Size: 8 meters (25 feet) and above

Product Dimensions

• Designed for installation on boats with a deadrise of 16° to 24°
• Compact and efficient form factor for streamlined hull mounting

Highlights

• Wide beam CHIRP technology for twice the coverage of standard high-frequency transducers
• Consistent 25° beam width across the full frequency range for accurate fish detection
• Optimized for deep and shallow water use with enhanced sonar clarity
• Fast-response temperature sensor for real-time water monitoring
• Ideal for fishing and marine navigation with advanced echosounder integration

Available Variations

The Airmar B175C-20-HW transducer is available in multiple configurations to accommodate different marine electronics:

• B175C-20-HW-MM - Connector: Airmar 12-Pin
• B175C-20-HW-0 - Connector: Bare Wire
• B175C-20-HW-12G - Connector: Garmin 12-Pin
• B175C-20-HW-8G - Connector: Garmin 8-Pin
• B175C-20-HW-14HB - Connector: Humminbird 14-Pin
• B175C-20-HW-HB - Connector: Humminbird 9-Pin
• B175C-20-HW-BL - Connector: Lowrance 7-Pin
• B175C-20-HW-11R - Connector: Raymarine 11-Pin
• B175C-20-HW-9N - Connector: Simrad 9-Pin

With its superior technology and broad compatibility, the Airmar B175C-20-HW ensures that anglers and marine enthusiasts can maximize their underwater visibility and sonar performance for a more successful and efficient experience on the water.
