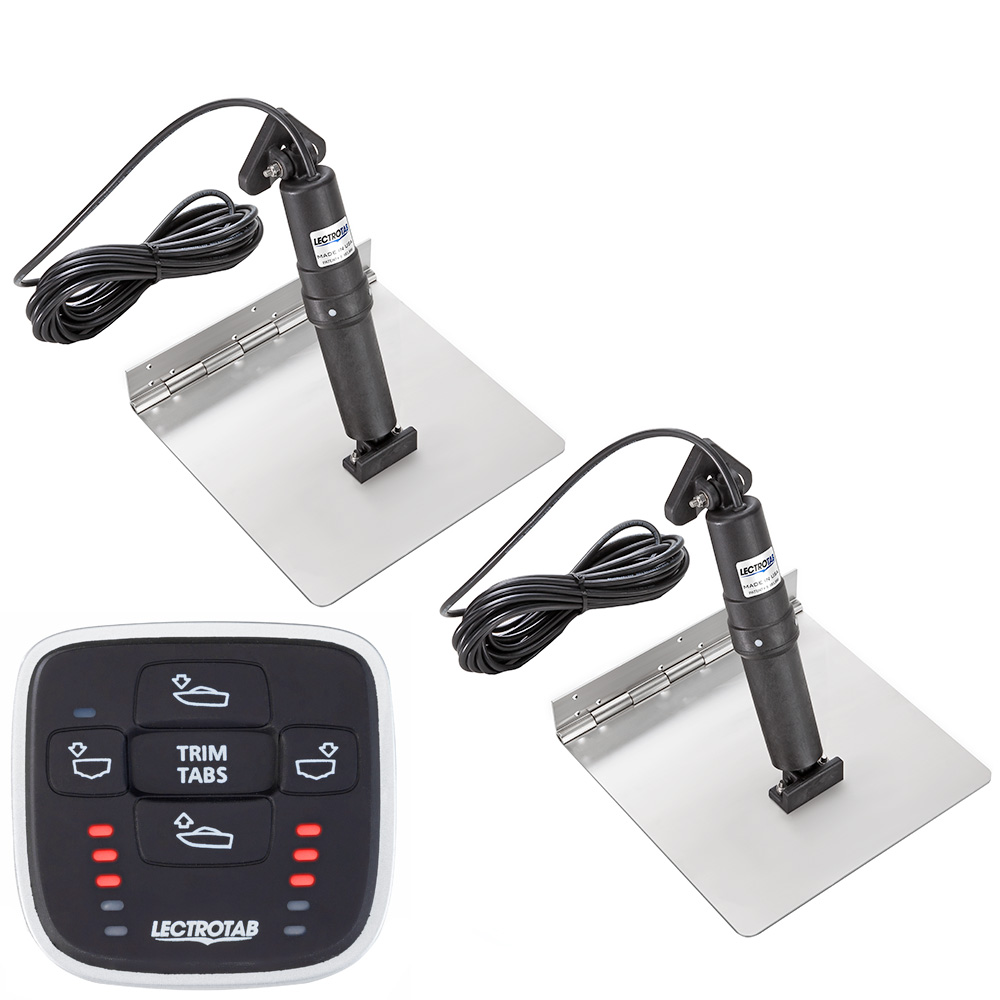

Lectrotab - XKA Alloy Trim Tab Kit - Stainless Steel, Manual Leveling Control

Optimize Your Vessel's Performance with Lectrotab's Stainless Steel Trim Tab Kit

Presenting the Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 9, a pinnacle of marine engineering designed to enhance your boat's stability and efficiency. Crafted from 12 gauge, 304 stainless steel, these trim tabs are built for unmatched strength and reliability. The innovative design features a continuous rolled and pinned hinge, eliminating the need for welding, while the precision-engineered actuator ensures quiet, maintenance-free operation. Fully encapsulated in a non-metallic, permanently sealed housing, these actuators offer corrosion resistance, precise tab positioning, and maximum lift force for an optimal boating experience. The MLC-1 manual leveling control allows for simultaneous tab adjustment with the touch of a button, complemented by LED indicators that adapt to lighting conditions for ease of use.

Unrivaled Features for Marine Excellence

• Durable stainless steel construction with a robust hinge mechanism
• Protected upper ram seal, safeguarded against marine growth damage
• Internal systems for pressure equalization and braking, ensuring controlled adjustments
• Silent operation paired with the capability to exert up to 1000 lbs of force
• Corrosion-resistant and unaffected by UV exposure for long-lasting performance
• MLC-1 control for easy, single-button tab adjustments with LED position indicators

Detailed Technical Specifications

• Trim Tab Dimensions: 9" x 9" (23 x 23 cm), perfect for boats 14' to 19' (4 to 6 M)
• Material: High-grade 12 gauge, 304 Stainless Steel for durability
• Actuator Voltage: 12 V, with a 2.25" (57 mm) stroke length for precise control
• Actuator Cable Length: 23' (7 M), offering flexible installation options
• Control Unit Size: 3.15" x 3.07" (80 x 77 mm), with a straightforward 2" (50 mm) mounting cutout

Choose Your Ideal Variant

• XKASML9X9: The standard 9" x 9" setup for balanced lift and control
• XKASML9X12: 9" x 12" variant for additional lift in varying sea conditions
• XKASML9X18: 9" x 18" option for larger vessels seeking greater stability
• XKASML9X24: 9" x 24" for maximum performance and efficiency
• XKASML12X9: 12" x 9" for boats needing increased lift without extending width
• XKASML12X12: A versatile 12" x 12" choice for comprehensive trim control
• XKASML12X18: 12" x 18" for significant stability improvements in rough waters
• XKASML12X24: The ultimate 12" x 24" kit for unparalleled trim tab efficiency

Seamless Installation and Operation

Each Lectrotab Stainless Steel Trim Tab Kit is meticulously designed for easy installation, allowing you to quickly enhance your vessel's performance and handling. The kit includes an MLC-1 manual leveling control for easy adjustments, two stainless steel tabs, two actuators with extended cables, and a comprehensive instruction manual. Elevate your boating experience with Lectrotab's advanced trim tab solution, designed for precision, durability, and effortless control.
