Vivid Color Display for Seamless Marine Data Monitoring

Maretron’s DSM410 is a high-resolution 4.1" color display designed for optimal visibility even in direct sunlight. This advanced marine display seamlessly integrates with NMEA 2000® networks, offering real-time monitoring of critical vessel data. With customizable screen configurations and a user-friendly five-key illuminated keypad, the DSM410 provides clear and efficient access to navigation, engine, environmental, and electrical information.

Beyond simple monitoring, this multifunction display supports an advanced alarm system and electrical switching capabilities, ensuring that critical alerts are easily managed. Users can choose from numeric, gauge, bar, or graph formats to display data, with options to cycle through multiple views. This versatility reduces mounting space requirements while enhancing overall vessel monitoring efficiency.

Advanced Monitoring with NMEA 2000® Integration

The DSM410 connects directly to an NMEA 2000® network and, with the exception of AIS data, can display a vast range of marine information, including:

• AC power monitoring (voltage, current, frequency)
• Battery and electrical distribution data
• Depth, speed, and heading information
• Fuel management metrics, including fuel economy and consumption
• GPS navigation data (COG, SOG, waypoints)
• Environmental conditions such as temperature, humidity, and barometric pressure
• Engine performance indicators (coolant temp, oil pressure, RPM, fuel rate)
• Rudder position and transmission status
• Wind speed and direction (apparent and true)

Customizable Alarm and Alert System

The DSM410 allows users to set up customizable visual and audible alarms, ensuring critical vessel conditions are monitored effectively. From battery levels to water depth warnings, the alert system enhances safety and situational awareness.

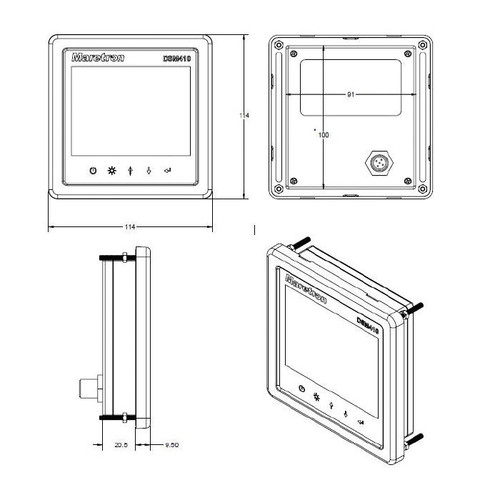

Product Dimensions

• Display Size: 4.1"
• High-resolution screen for clear visibility in all lighting conditions

Highlights

• Sunlight-readable color display for enhanced visibility
• Customizable screen layouts to suit individual monitoring preferences
• NMEA 2000® compatible for seamless marine network integration
• User-friendly illuminated keypad for easy operation in any lighting condition
• Advanced alarm functionality with visual and audible alerts
• Multi-format display including numeric, gauge, bar, and graph options
• Space-saving design with multiple data views in a single unit

Variations List

• DSM410-01 – 4.1" Display
• DSM570-01 – 5.7" Display

The Maretron DSM410 is the perfect solution for boaters looking for a high-performance, customizable display that provides real-time access to essential vessel data.
