Blue Sea System - 7601 DC Mini ACR Automatic Charging Relay - 12/24V DC, 65 Amp

Introducing the 7601 DC Mini ACR Automatic Charging Relay: Compact and Efficient Charging Management

The 7601 DC Mini ACR Automatic Charging Relay is a compact and efficient device designed to effectively manage the charging current from alternators up to 65 Amps. With its 65 Amp continuous rating, this relay is compatible with most outboard and inboard engines, providing reliable charging management.

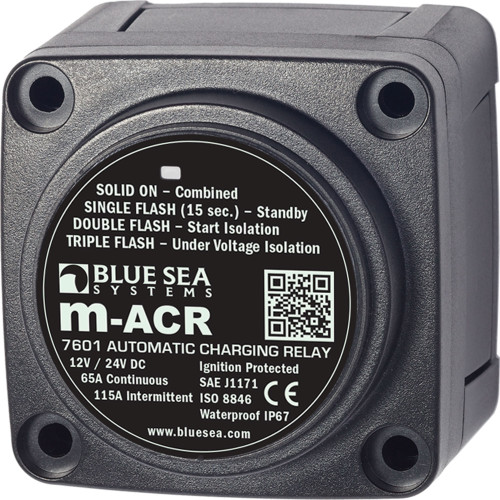

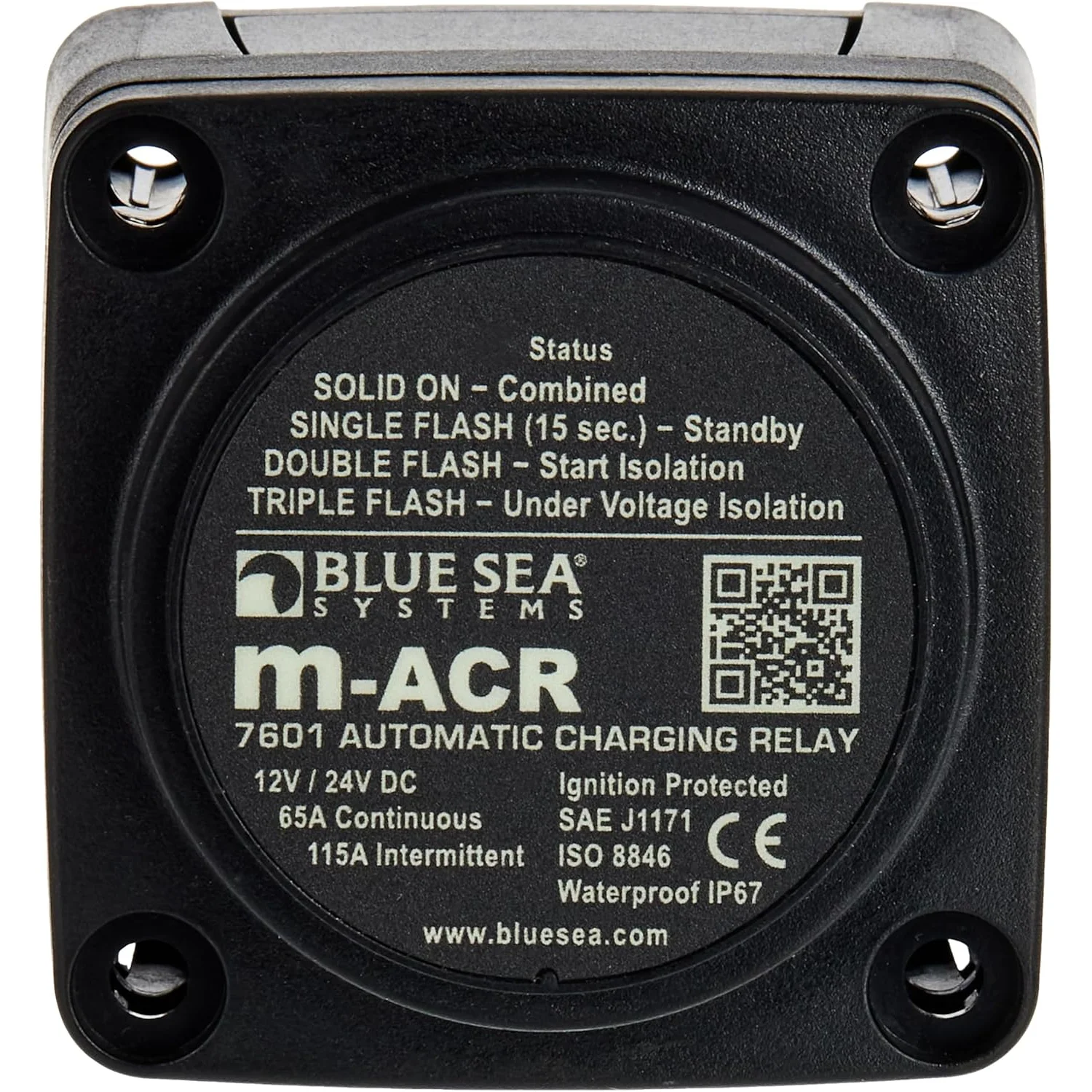

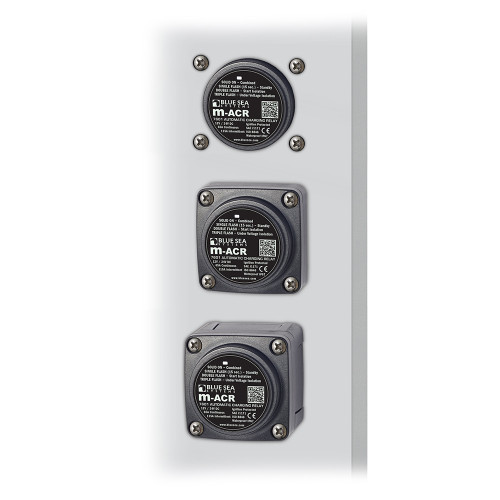

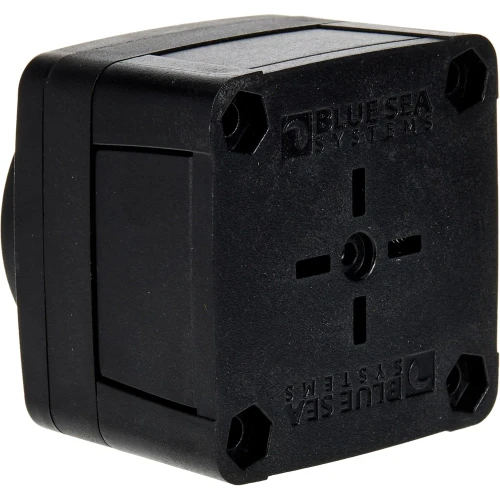

Featuring a compact case design, the 7601 DC Mini ACR is easy to surface and panel mount, offering convenience during installation. It has the ability to sense charging on two battery banks, ensuring efficient charging management. The snap-on cover provides insulation for terminal connections, while the LED indicator displays the status of the ACR.

The relay is equipped with a 1/4" x .032" male quick connect terminal for ground and a 5/8" (16 mm) stud length that can accept multiple cable terminals, ensuring flexibility in wiring configurations. It operates on a 12V DC voltage input, suitable for marine applications.

When it comes to specifications, the 7601 DC Mini ACR has an intermittent rating of 115A for 5 minutes, ensuring reliable performance under demanding conditions. The terminal stud size is 1/4"-20, and the relay contact position is open at 12.75V DC for 30 seconds. The continuous rating is 65A, with a maximum torque of 75 in-lb (8.5 Nm).

For operation, the relay has various current values, including 175mA for combined mode and 15mA for open mode. The relay contact position is combined at 13.0V DC for 30 seconds and open at 12.35V DC for 10 seconds. The under voltage lockout is set at 9.5V DC, ensuring optimal performance and protection.

The 7601 DC Mini ACR supports a maximum cable size of 1/0 AWG, accommodating various wiring configurations.

Highlights:

• Compact and efficient automatic charging relay
• Compatible with alternators up to 65 Amps
• Easy surface and panel mounting
• Senses charging on two battery banks
• Snap-on cover for insulation and LED indicator for status display
• 1/4" x .032" male quick connect terminal for ground
• 5/8" (16 mm) stud length accepts multiple cable terminals
• 12V DC voltage input
• Intermittent rating of 115A for 5 minutes
• Various operating current values for combined and open modes
• Maximum cable size of 1/0 AWG
