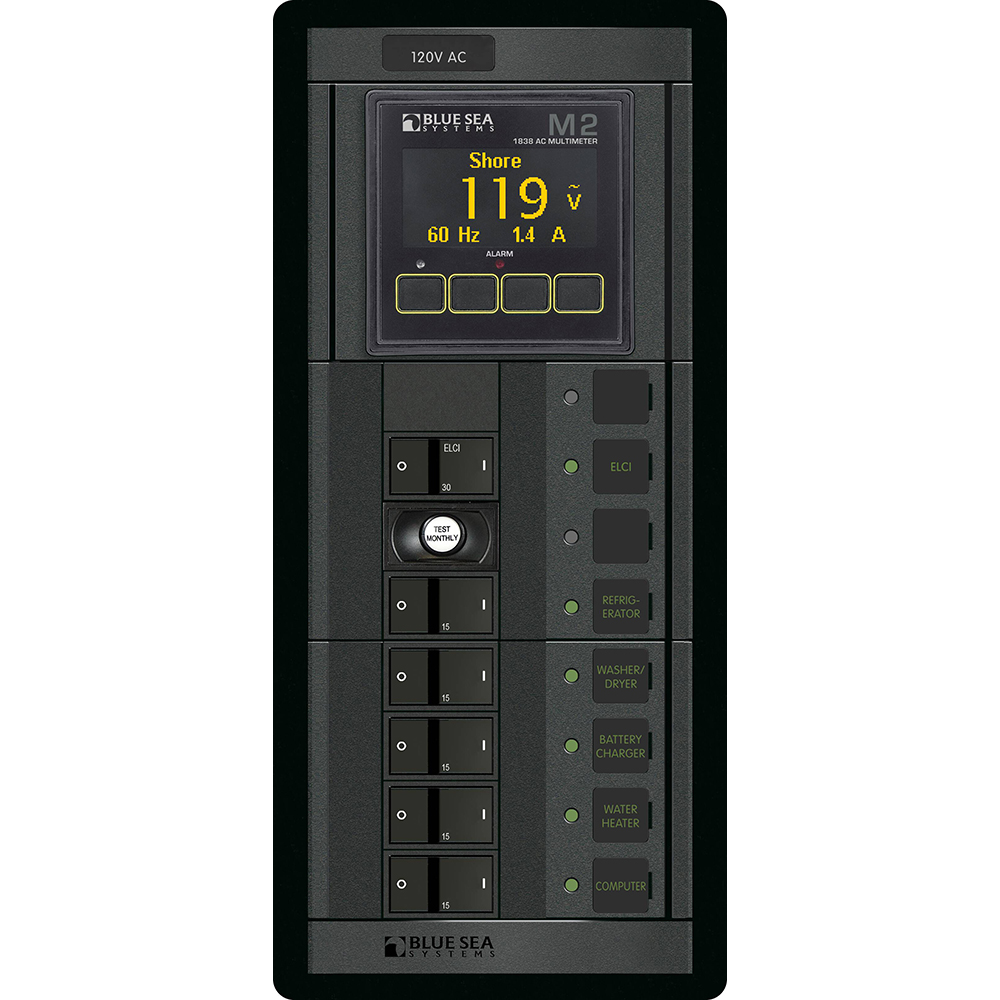

Blue Sea - 1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker w/M2 AC Multimeter

Blue Sea - 1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker w/M2 AC Multimeter

The 1504 - 360 Panel - ELCI + 5 Position 120V AC Flat Rocker with M2 AC Multimeter is a standard panel offered by Blue Sea Systems as part of their Battery Management Panels.

Highlights:

• ELCI Protection: The panel combines Equipment Leakage Circuit Interrupter (ELCI) protection with branch breakers, effectively minimizing the risk of fire and shock hazards caused by faulty appliances or circuit wiring issues.
• Main Circuit and Branch Circuit Protection: The panel provides main circuit protection while also allowing control and protection for five branch circuits.
• Green ON Indicating LEDs: Each circuit on the panel features green ON indicating LEDs, providing quick visual confirmation of the operational status of each circuit. This feature enhances convenience and safety.
• Backlit Label Positions: The label positions on the panel are backlit, ensuring clear visibility and ease of use even in low-light conditions. This enhances readability and helps identify different circuits.
• Five Branch Circuit Positions: The panel includes five positions for branch circuits, in addition to the ELCI, allowing for control and protection of multiple circuits.
• Trip Reference and Actuator Style: The panel features a 30A AC ELCI with a trip reference for reliable protection. The actuator style is a flat rocker, providing a user-friendly interface for circuit control.
• M2 AC Multimeter: The panel includes an M2 AC Multimeter, allowing for accurate measurement of AC voltage, providing additional functionality and monitoring capabilities.
• Voltage Rating: The panel has a nominal voltage rating of 120V, making it suitable for standard AC power applications.
• A-Series Circuit Breaker Type: The circuit breaker type used in this panel is the A-Series. It includes five branches rated at 15A each, along with the ELCI main rated at 30A.
• Leakage Trip Amps: The ELCI has a leakage trip amp rating of 30mA, providing effective protection against electrical faults.
• Compact Dimensions: The panel has dimensions of 10.75" x 4.88" x 3.99" (273 x 124 x 101mm), providing a compact yet versatile size for installation.
• Package Contents: The package includes the 1504 Panel itself, along with an instruction manual to guide users through the installation and setup process.

Please note that this product is sold inpidually, allowing for customization and integration into your specific battery management system.
