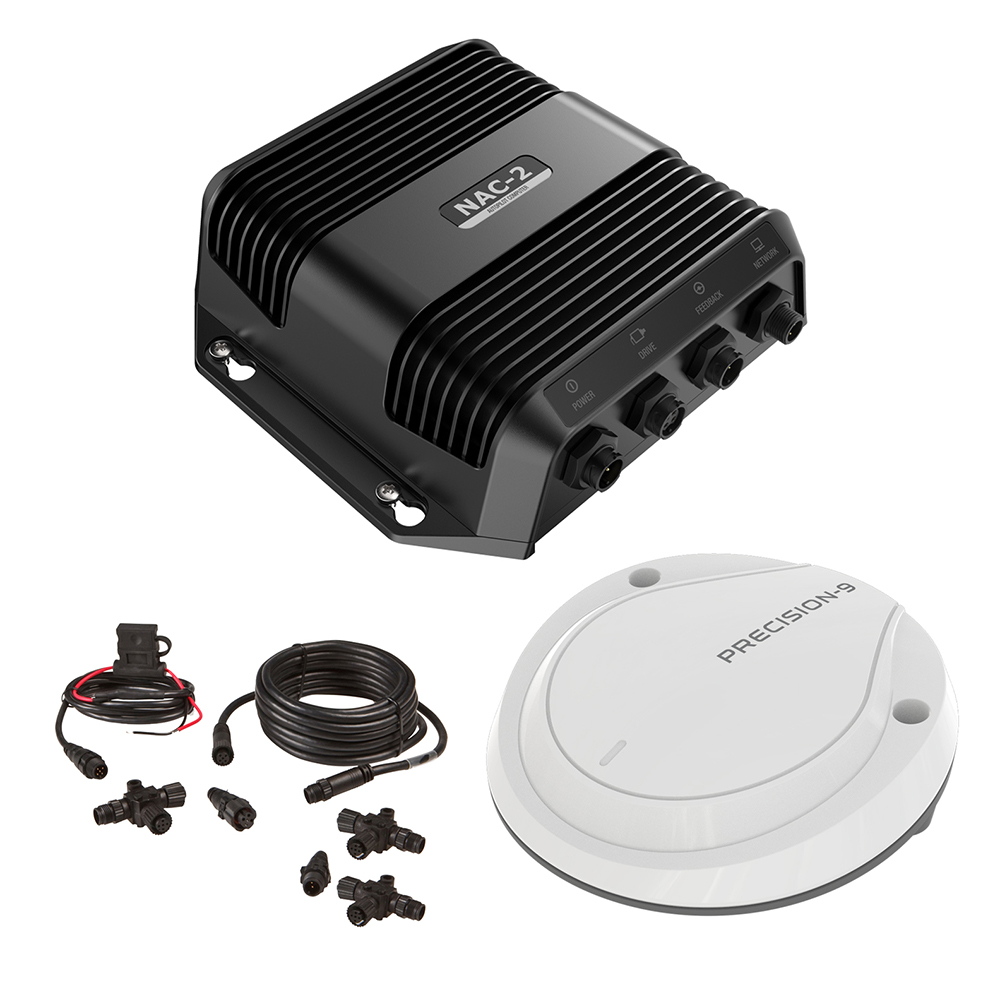

Simrad - NAC-2 VRF Core Pack - NAC-2, Precision-9 & N2k Starter Kit

Elevate Your Sailing with the NAC-2 VRF Core Pack

Experience a new realm of marine navigation prowess with the NAC-2 VRF Core Pack. This extraordinary ensemble introduces you to a world of precise control and seamless connectivity, combining the high-current NAC-2 autopilot computer, the reliable Precision-9 compass, and the essential N2k Starter Kit. Embark on your maritime journey with confidence, as these components work harmoniously to redefine your yachting experience.

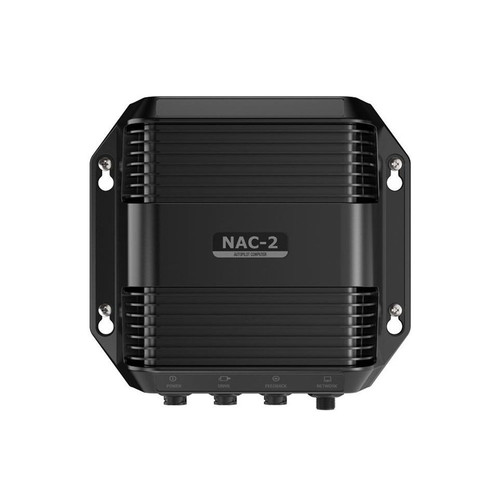

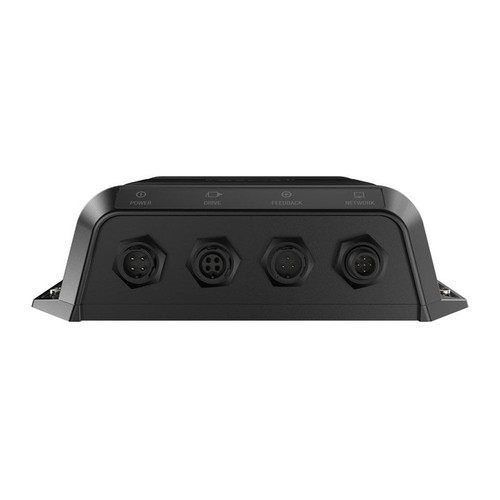

NAC-2 Autopilot Computer: Your Masterful Helmsman

Meet the intelligent force behind your autopilot system - the NAC-2 Autopilot Computer. With its advanced control algorithms, the NAC-2 stands as your unwavering helmsman across a wide spectrum of weather conditions and sea-states. Seamlessly integrating with hydraulic or mechanical drive units, heading sensors, and rudder feedback systems, the NAC-2 is tailored for vessels up to 10 meters (33 feet) in length. Whether you're navigating tranquil waters or tackling challenging tides, the NAC-2 empowers you with precise and reliable control.

Precision-9 Compass: Navigation Perfected

Chart your course with unwavering precision, guided by the exceptional Precision-9 Compass. This compact marvel supplies Simrad, B & G, and Lowrance autopilot, radar, and navigation systems with reliable heading and rate-of-turn information. Built on solid-state sensor technology, the Precision-9 offers unparalleled accuracy while ensuring straightforward installation on any vessel.

N2k Starter Kit: Building Seamless Networks

Forge a seamless network of communication with the N2k Starter Kit. This essential kit lays the foundation for effortless connectivity, featuring key components like a Network power cable, a 4.5-meter (15-foot) N2K cable, three T-connectors, and two network terminators. Streamline your marine setup and experience a new level of system integration.

Unveiling the NAC-2 VRF Core Pack's Outstanding Features:

• Precise Navigation Control: The NAC-2 Autopilot Computer boasts advanced algorithms for navigating various conditions with precision.
• Solid-State Sensor Technology: The Precision-9 Compass employs reliable sensor technology to ensure accurate heading and rate-of-turn data.
• Simple Connectivity: The N2k Starter Kit establishes a strong foundation for seamless component communication.
• Optimized for Compact Spaces: The compact design of the Precision-9 Compass allows for easy installation even in confined spaces.
• Waterproof Design: With an IPX7 waterproof rating, the Precision-9 is built to withstand challenging maritime environments.

Technical Specifications:

NAC-2 Autopilot Computer:

• Operating Temperature: -25°C to +55°C (-13°F to 131°F)
• Protection: Splashproof, IPx5
• Weight: 0.6 kg (1.3 lbs)
• Overall Dimensions: Width: 7.1" (180mm), Height: 2.2" (57mm)
• Power Supply: 9-31.2 V DC
• Load: 140 mA + drive unit load
• Performance: Drive: 8 A continuous, 16A for 1s
• Network: 1xMicroC (NMEA2000)
• Feedback: Variable voltage/resistive 0-5V
• Drive Output: To PUMP-1 or HELM-1
• Solenoid: 12/24V DC, common, load range 10mA to 10A, off current <1mA
• Clutch: 12/24V DC, min 10mA, max 3A

Precision-9 Compass:

• Dimensions: H: 36mm (1.42"), W & D: 119mm (4.69")
• Weight: Module - 165g (5.8oz), Bracket - 130g (4.6oz)
• Supply and Interface: 8-16 V via NMEA 2000
• Power Consumption: 0.4 W
• NMEA 2000 Load Equivalence No. (LEN): 1
• NMEA 2000 Ports (Input/Output): 1
• Calibration: Automatic (User Prompted)
• Repeatability: ±1.0° (or better)
• Roll/Pitch Range: ±45°
• Heading Accuracy: ±2° after calibration
• Dynamic Performance: Heading error <2° after 10 sec. turn
• Environmental Protection: IPx7
• Compass Safe Distance: 0.5M (1.7')
• Temperature Range Operation: -25 to +65°C (-13 to +149°F)
• Temperature Range Storage: -30 to +70°C (-22 to +158°F)

Embark on a voyage of precision and control with the NAC-2 VRF Core Pack — where innovation meets maritime mastery.
