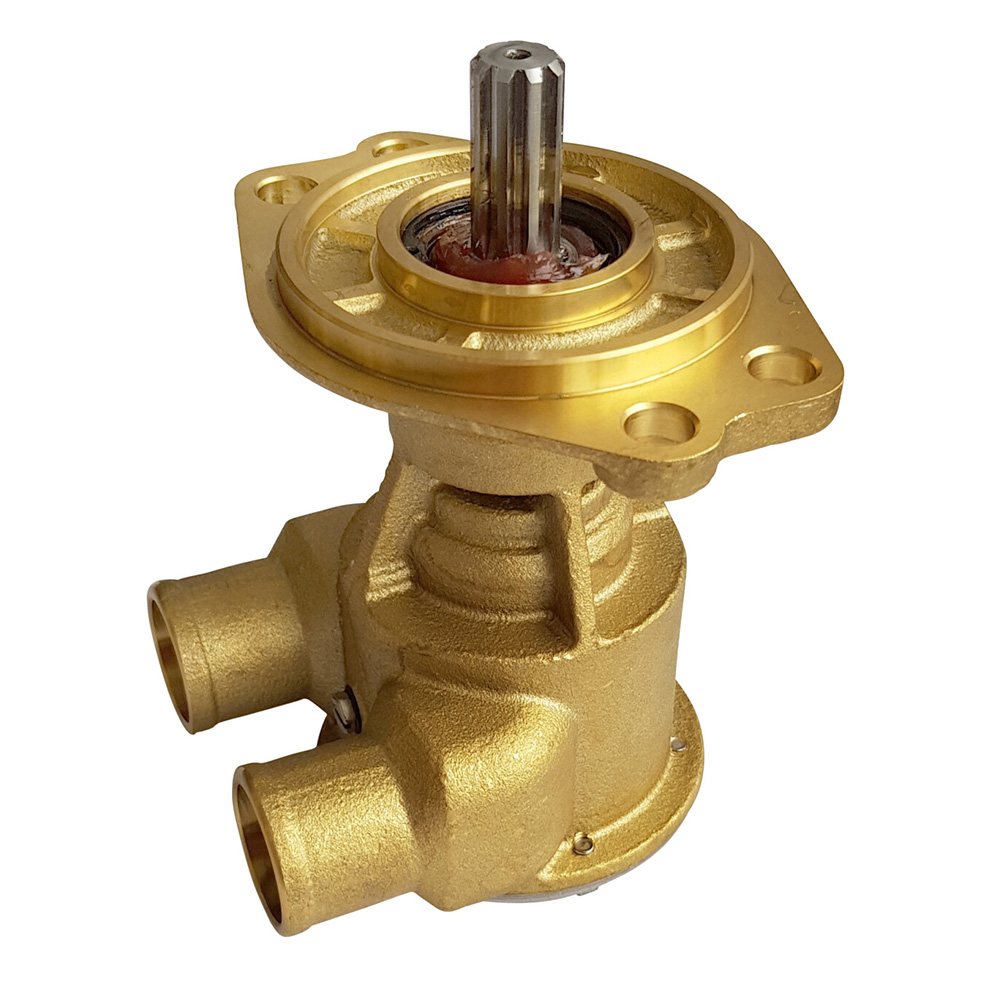

Johnson Pump - F7B-9 Impeller Pump OEM

Reliable and Efficient Water Pumping for Marine Engines

Introducing the Johnson Pump F7B-9 Impeller Pump, designed specifically to meet the demanding needs of marine and navy applications. This flexible impeller pump provides an efficient solution for raw water pumping, ensuring reliable performance for engine cooling and freshwater handling. Its self-priming ability and capacity to pass large solids without clogging make it a superior choice for maintaining optimal engine temperatures and fluid circulation on your vessel.

Engineered for Superior Performance

The Johnson Pump F7B-9 boasts a flexible impeller design that creates its own vacuum by depressing and rebounding vanes, allowing for self-priming and lifting water up to 3 meters. This feature ensures that the pump can be installed above the waterline without the need for manual priming. Made from durable materials such as neoprene rubber and bronze, this pump is built to last, providing consistent performance in harsh marine environments. Additionally, the pump's design allows it to handle large solids without clogging, reducing the need for filtering the incoming fluid.

Key Features:

• Self-Priming Ability: Can lift water up to 3 meters, eliminating the need for manual priming.
• Durable Construction: Made with neoprene rubber impellers and a bronze body for long-lasting use.
• Solid Handling: Capable of passing large solids without clogging or damaging the pump.
• Replaceable Wearing Parts: Easy maintenance with replaceable parts for all standard models.
• Versatile Applications: Ideal for engine cooling, raw water handling, and freshwater handling.

Technical Specifications

• Port Size: 1 1/4” Hose
• Mount Type: SAE A Flange
• CAM: Full 1/1
• Shaft: Lip seal
• Material: Bronze

Compact and Robust Design

The Johnson Pump F7B-9 Impeller Pump is designed to be both compact and robust, making it easy to install in various marine setups. Its strong construction ensures it can withstand the challenging conditions of marine environments, providing reliable performance every time.

Cooling Capacity

The cooling capacity of the Johnson Pump F7B-9 is related to several factors, including the engine type (gasoline or diesel), the size of the heat exchanger, and the water-cooled engine oil, reverse gear, and exhaust system. This pump is designed to meet the specific cooling needs of your marine engine, ensuring optimal performance and longevity.

Product Variations

1. Flange Style Mount:

• Model: 10-13599-02
• Mount Type: Flange Style Mount
• Ideal for specific engine setups requiring a flange style mount.

1. SAE A Flange Mount:

• Model: 10-24398-01
• Mount Type: SAE A Flange Mount
• Suitable for engines requiring an SAE A flange mount, ensuring compatibility and ease of installation.

The Johnson Pump F7B-9 Impeller Pump is designed to fit seamlessly into your marine setup. Its dimensions ensure it can be easily installed and maintained, providing a reliable solution for your water pumping needs.

The Johnson Pump F7B-9 Impeller Pump is the perfect choice for efficient and reliable water pumping in marine environments. Its advanced design, durable materials, and versatile applications make it an essential addition to any vessel, ensuring optimal performance and peace of mind. Choose the Johnson Pump F7B-9 for unparalleled efficiency and durability on the water.
