Advanced Marine Autopilot System for Superior Navigation

The Sitex SP38 Autopilot Corepack is a high-performance marine autopilot system engineered for precision navigation across various vessel types. Whether for commercial fishing boats, workboats, towboats, offshore vessels, or yachts, this system provides reliable and adaptive steering capabilities.

Equipped with Intelligent Steering Technology (IST), the SP38 learns vessel characteristics over time, optimizing performance for smooth and responsive control. Its Adaptive Steering feature adjusts for varying sea conditions and vessel speeds, ensuring superior maneuverability. The system also features an Auto-Setup function, which automatically detects drive, rudder response time, and compass calibration for effortless installation and use.

With multi-language support, NAV Mode for precise track steering, and Automatic Leeway Compensation (ALC) to correct for drift, tide, and wind, the SP38 is an indispensable tool for professional mariners seeking top-tier performance.

Cutting-Edge Technical Specifications

• Operating Voltage: 10 to 30 VDC
• Power Consumption: 0.5 Amps average, 3 Amps peak (lower consumption with reduced backlight setting)
• Drive Output: 20 Amps
• Network Compatibility: NMEA 2000 & Ethernet
• Navigational Interface: NMEA 0183 Input/Output
• NMEA 0183 Output: Heading (10x per sec), Autopilot Status (1x per sec)
• Heading Reference Options: Fluxgate, Magnetic Compass, NMEA Compass, or Sat Compass
• Course Resolution: 1°
• Course Detection: 0.5°

Designed for Seamless Marine Integration

The SP38 is fully compatible with a wide range of onboard instruments and steering systems, making it a versatile choice for various marine applications. It supports multi-station operation with security station lock, allowing for efficient control from multiple locations on the vessel. The optional Z-Drive interface offers a 360-degree azimuth drive capability, while an Automatic Bow-Thruster Control enables hands-free Sabiki fishing or precise station-keeping.

Key Features for Enhanced Performance

• Proportional Rate Control (PRC): Ensures smooth and gentle steering response

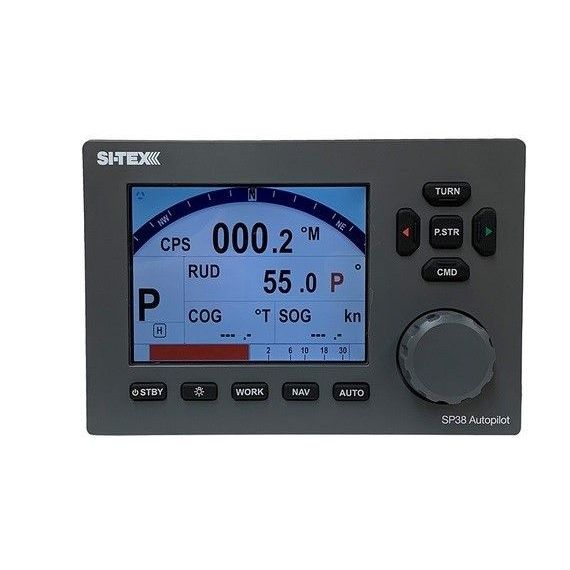

• Sunlight-Viewable 5.7” Color LCD Display: Provides clear visibility in all conditions
• IP67 Waterproof Rating: Ensures durability for harsh marine environments
• Auto Trim & Adjustable Settings: Allows for fine-tuning of yaw, turn rate, and rudder settings
• Collision Avoidance: Features PORT and STBD dodge buttons for immediate course adjustments
• RoHS & CE Compliance: Ensures EMI and RFI immunity for reliable operation
• Night Vision Mode: Red backlit LCD display protects night vision for safer navigation

Optimized for Diverse Vessel Types

The SP38 comes with pre-defined operational parameter sets tailored for full- and semi-displacement hulls, planing hulls, sterndrives, and sailboats. Additionally, the Work Mode enhances functionality for commercial fishing boats, towboats, and workboats, providing professional-grade reliability.

This autopilot system is engineered to handle challenging marine environments with precision and ease, making it an essential upgrade for any vessel requiring advanced steering automation.
