Advanced Three-Stage Marine Battery Charging

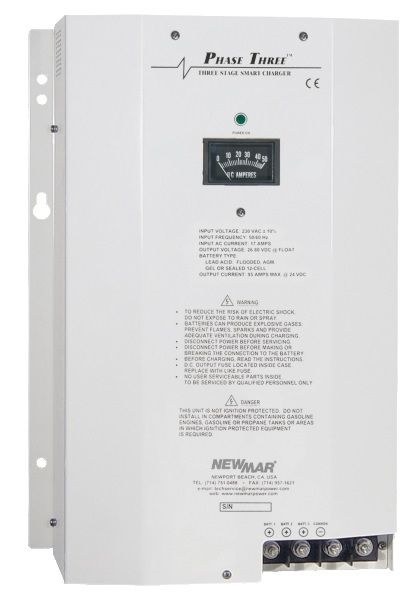

The Newmar Power PT-24-60W 24V 60A Charger is engineered for the demanding needs of marine applications, from small recreational boats to large commercial vessels. Utilizing advanced three-stage "smart" charging technology, this charger optimizes battery performance, ensures fast recovery, and extends battery life. Its rugged construction and adaptable features make it a reliable choice for maritime environments.

Intelligent Charging for Maximum Battery Efficiency

Designed with versatility in mind, this charger includes a selector switch that allows seamless adaptation to different battery types, including gel-cell, flooded lead-acid, and AGM batteries. The unit intelligently interacts with batteries, automatically adjusting its output voltage to maintain optimal charging and float levels. Additionally, an optional temperature compensation sensor adjusts voltage based on ambient battery temperature for enhanced charging efficiency.

Robust Marine-Grade Construction

Built to endure the challenges of marine environments, the Newmar PT-24-60W features a rugged stainless steel case with a durable white powder coat finish. Internal circuitry is polyurethane-coated for superior corrosion resistance, ensuring long-term reliability even in harsh conditions.

Technical Specifications

• Input Voltage: 230V AC
• Output Voltage: 24V DC
• Maximum Output Current: 60A
• Battery Capacity Compatibility: 120-600 amp-hours
• Power Factor Rating: .7
• Operating Temperature Range: -40°C to +60°C (derates from 100% @ 50°C to 75% @ 60°C)
• Output Banks: 3
• Compliance: EN, CE

Product Dimensions

• Height: 14.8 inches (37.6 cm)
• Width: 9.6 inches (24.4 cm)
• Depth: 5.6 inches (14.2 cm)
• Weight: 24.1 lbs (11 kg)

Finishes

• Stainless steel casing with a white powder-coated finish

Key Features

• Smart three-stage charging: bulk, absorption, and float
• Wide compatibility with gel-cell, flooded lead-acid, and AGM battery types
• Multiple isolated output banks for simultaneous charging
• Ammeter for total output current monitoring
• Optional temperature compensation sensor for optimal voltage adjustment
• Current limiting to prevent overload damage
• LED indicators and optional remote panel for clear status display
• Can function as a power supply without a battery in line
• Corrosion-resistant, marine-grade internal components
• Safety and EMC compliance certifications
• Two-year parts and labor warranty
