Advanced Multi-System GNSS Positioning for Marine Use

The Digital Yacht GPS160 TriNav GPS is a high-performance GNSS positioning sensor designed to deliver superior accuracy and reliability for marine navigation. Utilizing GPS, Glonass, and Galileo satellite systems, this advanced receiver ensures exceptional precision with typical accuracy better than 1 meter. The integration of TriNav™ technology optimizes data from multiple satellite sources, reducing vulnerabilities from spoofing or local interference. Whether used for navigation, chart plotting, or professional marine applications, the GPS160 provides robust and uninterrupted positioning data.

High-Precision GNSS Receiver with USB Connectivity

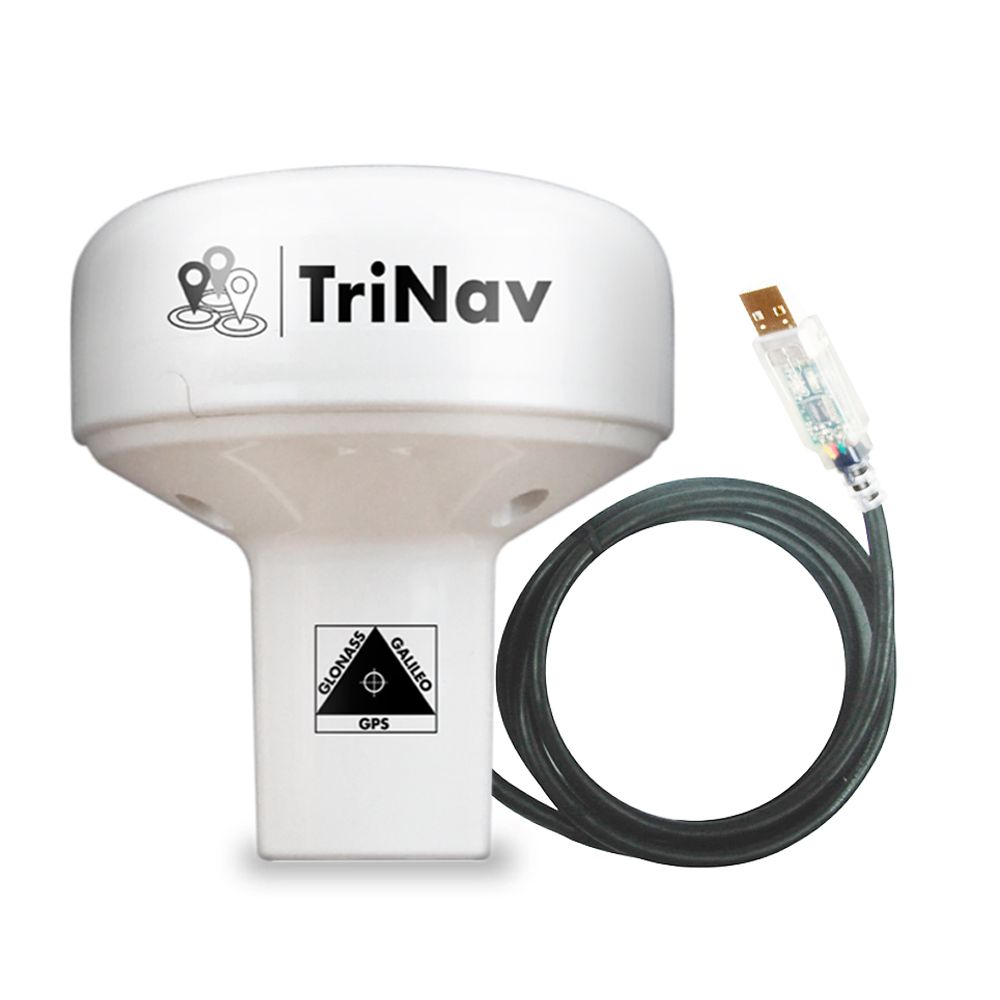

The GPS160USB variant is specifically designed for seamless integration with PC, MAC, or Linux systems, featuring a 5-meter USB cable for direct connection. The device is self-powered via USB, eliminating the need for additional power sources. When connected, it creates a virtual COM port on the host system, allowing navigation software to receive precise positioning data effortlessly.

Customizable Performance and Flexible Configuration

The GPS160 offers flexible configuration options to meet various operational requirements. Users can set the device to function as a dedicated GPS, Glonass, or Galileo-only receiver. Additionally, baud rate settings (4800, 38400, and 115200) can be adjusted through internal DIP switches, along with multiple NMEA data output formats, including datum information.

Sophisticated Anti-Spoofing and Interference Rejection

To ensure reliability in all marine conditions, the GPS160 is equipped with an advanced anti-spoofing algorithm, enhancing its ability to reject interference and maintain signal integrity. This makes it an excellent choice for both recreational and professional maritime applications, including ECDIS (Electronic Chart Display and Information System) support.

Technical Specifications

• 72-channel GNSS receiver supporting GPS, Glonass, and Galileo
• Ultra-low power consumption (<20mA at 12V DC)
• User-configurable NMEA sentence structure
• Up to 18Hz update rate for smoother navigation plotting
• Multiple baud rate settings (4800, 38400, 115200)
• Mounting options: Puck installation or industry-standard 1" x 14TPI threaded mount

Product Dimensions

• USB cable length: 5 meters

Highlights

• TriNav™ technology ensures optimal accuracy by combining data from multiple GNSS sources
• Self-powered via USB for direct connection to PC, MAC, or Linux systems
• Virtual COM port creation for seamless integration with navigation software
• Selectable GNSS operation mode (GPS, Glonass, or Galileo)
• Interference-resistant design with anti-spoofing algorithms
