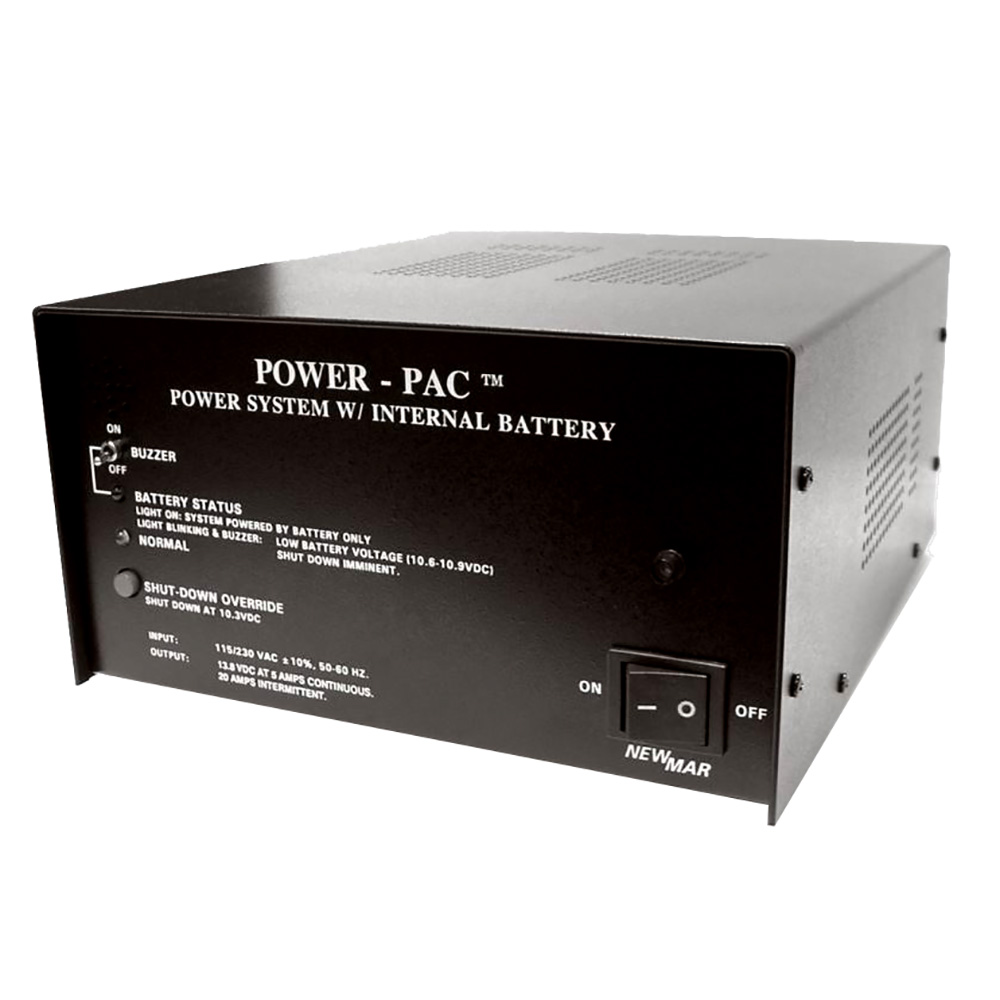

Newmar Power - Pac Power Supply

Reliable Power Backup for Essential Marine Equipment

The Newmar Power-Pac 14AH Power Supply is designed to provide continuous, clean, and stable DC power to your critical marine communication and navigation equipment. This power supply is perfect for commercial vessels, workboats, and yachts, ensuring that radios, GPS units, and other sensitive devices remain operational even during power outages. With built-in backup batteries, the Power-Pac charges during normal operation and seamlessly takes over when AC power is lost.

Key Features and Benefits

The Newmar Power-Pac 14AH Power Supply is packed with features that make it an essential component for any marine electrical system:

• Highly Regulated Output: Delivers a low ripple, noise-free 12-volt output to power sensitive communications equipment.
• Built-In Backup Battery: Provides immediate backup power in case of AC power loss, ensuring uninterrupted operation.
• Flexible Configuration: Includes internal mounting space and terminals to convert from the 7 A/H model to the 14 A/H model.
• User-Friendly Indicators: Features an "Output Normal" LED, a "Back-up Power Only" warning light, and audible/visual low battery voltage indicators.
• Advanced Protection: Equipped with over-voltage protection, current limit protection, and automatic low battery disconnect.
• Versatile Input: Supports 115/230 VAC input, selectable via a rear panel slide switch.

Simplified Overview: Key Specifications

• Battery Capacity: 14 amp/hour
• Dimensions (H x W x D): 5.3 x 9.0 x 10.5 inches (13.3 x 22.9 x 26.7 cm)
• Weight: 24 lbs. (10.9 kg)
• Input: 115/230 VAC, 50-60 Hz.
• Output: 13.6 VDC @ 5A continuous, 10A intermittent
• Regulation: 1% line and load
• Ripple: 1% P-P
• Operating Temp: 0-40 degrees C

Backup Power Performance

• 7 amps for 100 minutes
• 10 amps for 60 minutes
• 15 amps for 30 minutes
• 20 amps for 15 minutes *Assuming battery is at full charge when AC power fails.

Durable and Reliable Design

• Case: Vinyl laminated aluminum for durability.
• Power Cord: Comes with a 6' standard AC power cord.
• Battery: Sealed lead acid, deep-cycle batteries certified for air shipment by DOT and IATA.

Expandable Options

• Form C AC Failure Contacts: Available upon request for advanced monitoring.
• Extra Batteries: Expand backup power capacity up to 28 A/H with additional external batteries, sold separately in 7 A/H increments.

Product Variations: Tailored to Your Needs

Choose the Newmar Power-Pac variant that best suits your marine power requirements:

• POWER-PAC14AH Amperage 10A: Standard model with higher battery capacity for extended backup power.
• POWER-PAC7AH Amperage 7A: Compact model for smaller installations with lower power needs.

Conclusion

Equip your marine vessel with the Newmar Power-Pac 14AH Power Supply for reliable and uninterrupted power to your critical electronic devices. Its advanced features, robust protection mechanisms, and seamless backup battery integration make it the ideal choice for maintaining continuous operation of your marine communications and navigation systems. Select the variant that meets your needs and trust Newmar for superior performance and reliability on the water.
