Powerful and Versatile Automatic Windlass for Marine Applications

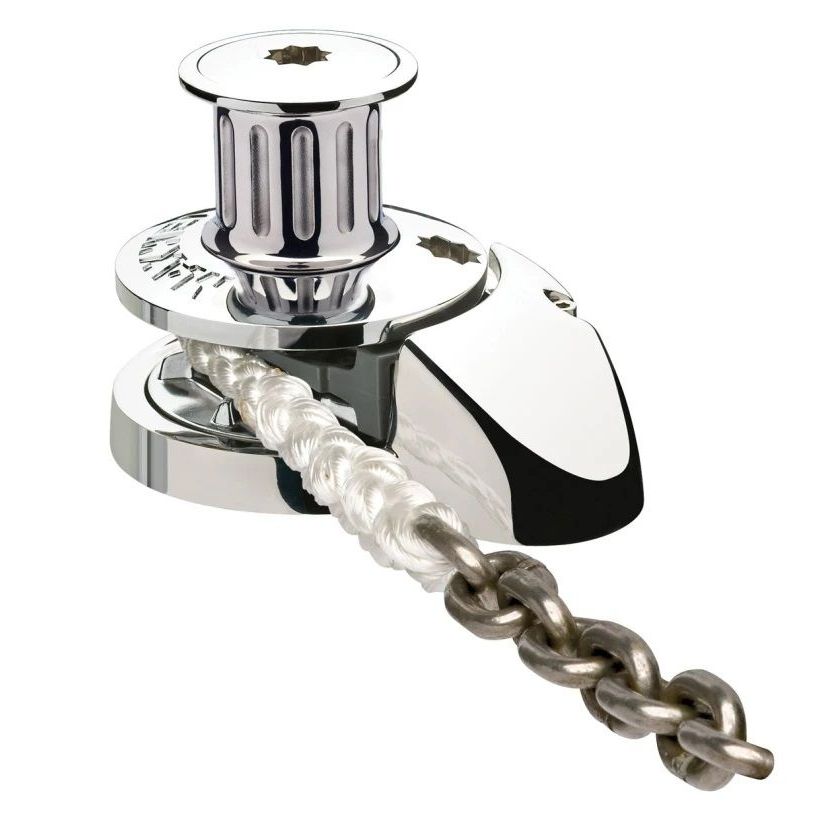

The Maxwell RC8-8 Vertical Windlass with Capstan is a high-performance, fully automatic rope/chain windlass designed for seamless anchor handling. Engineered to accommodate an 8mm (5/16") chain spliced to 14mm three-strand or 8-plait rope, this windlass ensures smooth and reliable anchoring. Its patented Wave Design™ chainwheel adapts to various chain pitch differences, delivering unparalleled performance and durability in marine conditions.

With a heavy-duty stainless steel (AISI 316) pressure arm, the RC8-8 provides optimal control over the rope/chain splice, ensuring secure and effortless retrieval. The unit's simple two-piece installation saves both time and effort, making it ideal for new installations and retrofitting alike. The unique spacer tube design allows flexible mounting through various deck thicknesses, while the self-aligning gearbox enhances installation versatility.

Additionally, the sealed oil bath and marine-grade hard-anodized alloy gearbox deliver maximum efficiency, ensuring longevity and resistance against harsh marine environments. Manual override and emergency clutch-free fall functionality provide an added layer of safety and convenience.

Technical Specifications

• Motor Power: 1000W
• Maximum Pull/Lift: 600 kg
• Chain Short Link Compatibility: 8mm (5/16")
• Additional Chain Compatibility: 6-7mm (1/4")
• Rope Compatibility: 14-16mm (5/8")
• Weight: 8 kg
• Mounting Orientation: Vertical
• Voltage: 12V DC
• Compact and lightweight design: Optimized for marine installations

Highlights

• Fully automatic operation for effortless anchor retrieval
• Patented Wave Design™ chainwheel adapts to chain pitch variations
• Heavy-duty stainless steel pressure arm for superior grip and performance
• Self-aligning gearbox and multiple mounting positions for easy installation
• Sealed oil bath gearbox for enhanced durability and efficiency
• Emergency manual override and clutch-free fall functionality
• Includes all essential components for dual-direction control

What's in the Box

• RC8-8 with Capstan 12V Windlass
• Circuit Breaker
• Reversing Solenoid
• Up/Down Panel Switch
• Clutch Release Handle

For enhanced performance and safety, the Maxwell RC8-8 Windlass should be used in conjunction with a chain stopper or alternative snubbing device to relieve strain on the windlass while at anchor. Additionally, a secure anchoring system should be in place while underway.
