Advanced Marine Radar System for Superior Navigation

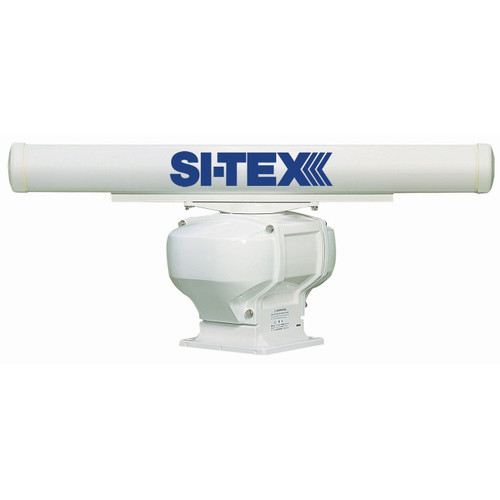

The Si-Tex T2010A-4 10.4" Display 12kW Open Array Radar is a powerful and reliable marine radar system designed for high-performance navigation in a variety of maritime conditions. This system features an advanced 4.5' open array antenna and a high-resolution 10.4" color display, ensuring precise target detection and clear visualization. Ideal for commercial and recreational marine applications, the T2010A-4 provides enhanced situational awareness and safety on the water.

High-Performance Radar Capabilities

Equipped with a dual-speed antenna capable of 48 RPM operation, this radar is optimized for high-speed and riverine navigation. The split-screen display allows users to monitor both long-range and short-range targets simultaneously, improving efficiency in complex environments.

The True-Trail function helps distinguish moving targets from stationary objects, while additional features such as Interference Rejection, Target Expansion, and Parallel Indexing provide superior target clarity. The unit also offers True/Relative Bearing capabilities for enhanced positional awareness.

Technical Specifications

• Antenna Type: 4.5' Open Array
• Peak Power Output: 12kW
• Operating Frequency: 9410 MHz ± 30MHz
• Beam Width: 1.8° Horizontal, 22° Vertical
• Rotation Speed: 24 or 48 RPM
• Pulse Width Options: 0.08, 0.15, 0.3, 0.5, 1 µs
• Intermediate Frequency: 60MHz
• Range Accuracy: Better than 8m or 1% of the selected range scale
• Minimum Detecting Distance: 25m

High-Resolution Display for Enhanced Clarity

The 10.4" TFT Color LCD ensures crisp and clear radar imaging, with a resolution of 480 x 640 pixels for precise target representation. The unit supports multiple display modes, including:

• Heads-Up
• North-Up (Requires heading input)
• Course-Up (Requires heading input)
• Waypoint-Up (Requires waypoint data input)

Compact and Durable Design

• Display Dimensions: 12 19/32" x 12 19/32" x 5 39/64"
• Power Requirements: 10.8 - 31.2V DC
• Power Consumption: 130 watts or less

Advanced Target Tracking

The Si-Tex T2010A-4 features a standard AIS interface module capable of tracking up to 200 targets, ensuring heightened awareness of surrounding vessels. Additionally, an optional 50-target Automatic Tracking Aid (ATA) is available for those requiring advanced monitoring capabilities.

Highlights

• High-powered 12kW radar system for precise target detection
• 4.5' open array antenna with dual-speed rotation (24/48 RPM)
• Split-screen display for simultaneous monitoring of long and short-range targets
• True-Trail function for easy identification of moving targets
• Interference rejection and target expansion for optimal clarity
• Standard AIS interface for tracking up to 200 targets
• Optional 50-target ATA for enhanced tracking capabilities
• Multiple display modes for customizable navigation
• Compact and durable design with power-efficient operation

Included Components

• MRD-104 Display
• RB718A - 12kW Pedestal
• RW701A-04 - 4.5' Antenna
• 15M Cable (242J159098A)
• DC Power Cable
• Quick Reference Guide
• Operation Manual

The Si-Tex T2010A-4 is engineered for demanding marine environments, offering advanced radar capabilities that enhance safety and navigation. Whether used for commercial operations or recreational boating, this radar system delivers exceptional performance and reliability.
