High-Performance Marine Chartplotter for Precise Navigation

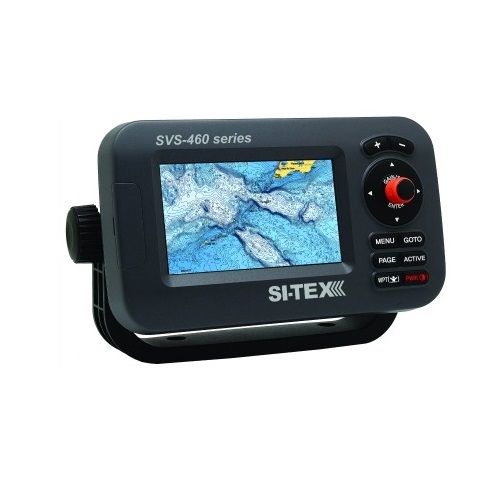

The Si-Tex SVS-460CE Chartplotter is a compact yet powerful navigation tool designed for a variety of marine applications, including center console skiffs, sailboats, and light commercial vessels. With a high-resolution 4.3-inch color LCD and an external 52-channel GPS antenna, this unit ensures precise and reliable positioning across global navigation systems, including U.S. GPS, European Galileo, Russian Glonass, and Asian QZSS. Its intuitive interface and brilliant LED backlighting make operation seamless in all lighting conditions.

Advanced GPS and Charting Capabilities

Equipped with "dual fuel" charting compatibility, the SVS-460CE supports both C-MAP and Navionics cartography, providing exceptional flexibility for mariners. The unit comes pre-loaded with a Navionics Gold North American Chart Card, offering extensive mapping coverage.

Intuitive and Reliable Performance

Designed for ease of use, this chartplotter offers quick-access controls and intuitive navigation, ensuring smooth operation in dynamic marine environments. The LED-backlit display enhances visibility, even in bright daylight, while its compact casing allows for convenient installation on a variety of vessels.

Technical Specifications

• Display Screen: 4.3-inch color LCD with LED backlight
• Resolution: WQVGA 480 x 272 pixels
• Waypoints: 20,000 storage capacity
• Track Points: 50,000, with two tracking modes
• Routes: Maximum of 100 routes, with up to 20 waypoints per route
• Chart Data: Preloaded with Navionics Gold (C-MAP MAX optional)
• Output Data: NMEA-0183 compatibility
• GPS Channels: 52-channel GPS with external antenna
• Alarms: Arrival, Anchor, XTE (Cross Track Error), Interval Timer, User-defined lines
• Input Voltage: 12-36V DC

Product Dimensions

• Display Size: 4.3 inches

Highlights

• High-accuracy GPS with external antenna for superior signal reception
• Supports both Navionics and C-MAP charting for versatile mapping options
• Brilliant LED backlighting for excellent readability in daylight
• Stores up to 20,000 waypoints and 50,000 track points for extensive navigation data
• Compact and rugged design, ideal for various marine vessels

What's Included in the Box

• Display unit
• Pair of knobs
• Power cord (7-wire)
• Gimbal bracket
• Owner’s manual
• 2 x 2-Amp fuses
• 4 mounting screws
• External GPS antenna

This Si-Tex SVS-460CE Chartplotter is a robust and reliable navigation tool that provides precise positioning, user-friendly operation, and flexible charting options—perfect for mariners who require accuracy and efficiency at sea.
