Engineered for High-Performance Marine Electrical Systems

The BEP Marine Heavy Duty Busbar is designed to handle demanding marine electrical applications, ensuring a secure and efficient power distribution system. Built to withstand the harsh marine environment, this busbar provides robust conductivity and protection, making it ideal for modern vessel electrical installations. Its modular design allows seamless integration with Pro Installer Bus Bars and Fuseholders, reducing installation time and optimizing space.

Superior Construction for Longevity and Durability

Crafted with tinned CDA102 copper conductors and stainless steel studs and nuts, this busbar ensures maximum corrosion resistance and durability. A high-temperature, fiber-reinforced plastic base adds strength while providing chemical resistance, making it ideal for harsh marine conditions. The clear polycarbonate cover offers insulation and protection while allowing easy visibility of connections.

Technical Specifications

• Voltage Rating: 50 VDC
• Stud Materials: Stainless steel (metric threads)
• Stud Sizes:
• 500A Busbar: 8mm (5/16") studs
• 660A Busbar: 10mm (3/8") studs
• Conductors: Tinned CDA102 copper for superior conductivity and longevity
• Base Material: Fiber-reinforced plastic for enhanced durability
• Cover: Innovative clear polycarbonate cover with "snap-outs" for extra cable access

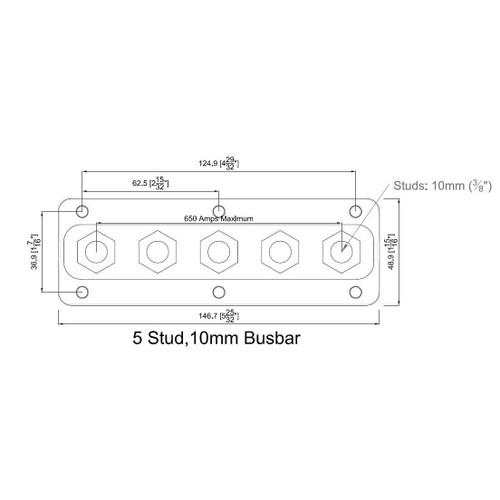

Product Dimensions

Designed with a compact footprint, this busbar saves space while providing generous stud lengths for easy cable connections.

Highlights

• Heavy-duty construction for marine and industrial applications
• Modular design for easy integration with other Pro Installer components
• Robust and corrosion-resistant materials for long-term performance
• Secure mounting options with additional screw holes for ultimate stability
• Clear protective cover insulates and safeguards connections on three sides

Variations List

• 777-BB3S-650 – 3 studs (3/8")
• 777-BB4S-500 – 4 studs (5/16")
• 777-BB5S-650 – 5 studs (3/8")
• 777-BB8S-650 – 8 studs (3/8")

Built for marine-grade reliability, the BEP Marine Heavy Duty Busbar is an essential component for ensuring a safe and efficient electrical system on your vessel.
