Advanced CHIRP Sonar Performance for Precision Marine Navigation

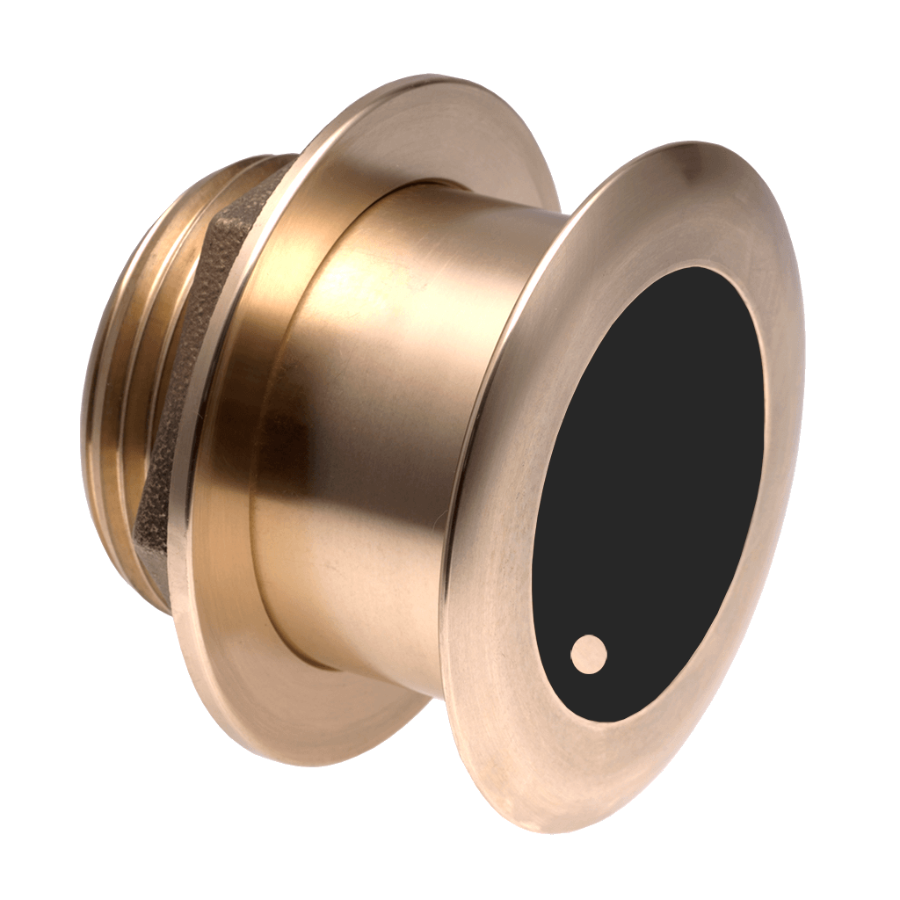

The Airmar B175C-0-H 0° Tilt Transducer is designed for marine enthusiasts seeking high-performance sonar capabilities. Featuring CHIRP technology, this transducer operates within a high-frequency range of 150 kHz to 210 kHz, delivering superior detail and target separation. Ideal for vessels 25 feet (8 meters) and above, it ensures optimal echo returns with a tilted element that compensates for hull deadrise, eliminating the need for a fairing. Whether used for navigation or sport fishing, the B175C-0-H provides reliable depth and fast-response water temperature readings to enhance your marine experience.

Superior CHIRP Technology for Unmatched Clarity

Engineered for precision, the high-frequency CHIRP operation enhances sensitivity to small targets, providing crisp, high-resolution sonar images. With an 80 kHz total bandwidth, it covers the popular 200 kHz fishing frequency while offering broader coverage. This makes it especially suitable for anglers fishing at depths up to 1,500 feet, ensuring clear and detailed imaging in shallower waters.

Rugged Design for Fiberglass and Wooden Hulls

The B175C-0-H transducer is designed to be installed flush against fiberglass, metal, or wooden hulls. The permanently tilted ceramic elements align the sonar beam straight down, optimizing sonar performance without the need for additional fairing blocks. This streamlined installation method ensures maximum echo returns while maintaining the vessel's smooth exterior profile.

Technical Specifications

• Deadrise Compatibility: 0° to 7°
• Acoustic Window: Urethane
• Power Rating: 1 kW @ 1% duty cycle
• Frequency Range: 130 to 210 kHz (Broadband)
• Beamwidth: 10° to 6°
• Maximum Depth: 1,000 feet

Key Features and Benefits

• High-frequency CHIRP (150 kHz - 210 kHz) for enhanced target separation and detail
• Covers the 200 kHz fishing frequency along with additional bandwidth
• Ideal for vessels 25 feet and larger
• Flush-mount installation for a streamlined hull profile
• Permanently tilted element ensures optimal sonar beam alignment
• Designed for fiberglass and wooden hulls

Variations List

The Airmar B175C-0-H transducer is available in multiple connector variations to suit different sonar systems:

• B175C-0-H-MM - Connector: Airmar 12-Pin
• B175C-0-H-0 - Connector: Bare Wire
• B175C-0-H-12G - Connector: Garmin 12-Pin
• B175C-0-H-8G - Connector: Garmin 8-Pin
• B175C-0-H-14HB - Connector: Humminbird 14-Pin
• B175C-0-H-HB - Connector: Humminbird 7-Pin
• B175C-0-H-BL - Connector: Navico 7-Pin
• B175C-0-H-9N - Connector: Navico 9-Pin
• B175C-0-H-11R - Connector: Raymarine 11-Pin
