7610120 Amp SI-Series Automatic Charging Relay: Versatile and Reliable Battery Management
The 7610120 Amp SI-Series Automatic Charging Relay is a versatile and reliable device designed to efficiently manage battery banks and protect sensitive electronics. With its advanced features, this relay ensures optimal performance and safeguards delicate electronics from potential voltage fluctuations.

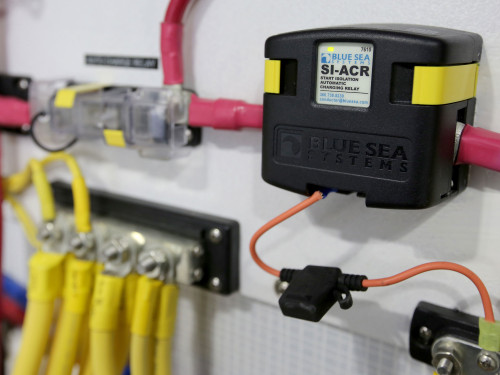

Designed to meet the needs of marine applications, this relay allows for temporary isolation of house loads from the engine circuit during engine cranking. This protects sensitive electronics from voltage fluctuations and ensures their uninterrupted operation. The relay automatically combines battery banks during the charging cycle and isolates them under discharge, optimizing the charging process for maximum efficiency.
Supporting both 12V and 24V systems, this relay features auto-ranging voltage input, allowing for seamless integration into different setups. Its IP67 waterproof rating ensures reliable performance even in wet conditions, as it can withstand temporary immersion for up to 30 minutes.

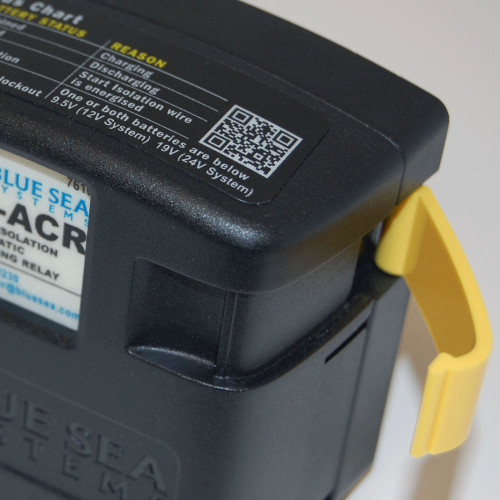

Safety is a top priority with the 7610120 Amp SI-Series Automatic Charging Relay. It is ignition protected, making it safe for installation on gasoline-powered boats. The relay includes a remote LED output that indicates the relay state, providing easy monitoring and status updates. An LED light illuminates when the batteries are combined, giving you visual confirmation of their connection. The LED also blinks in undervoltage lockout and starting lockout conditions, keeping you informed of critical system status.
This versatile relay supports high-output alternators of up to 120 Amperes, ensuring compatibility with a wide range of charging sources, including alternators, battery chargers, and solar panels. Its hermetically sealed contacts offer protection against moisture, while the side and bottom knockouts facilitate convenient power cable connections.

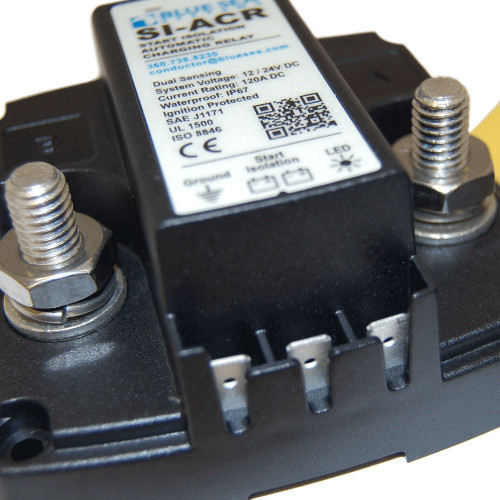

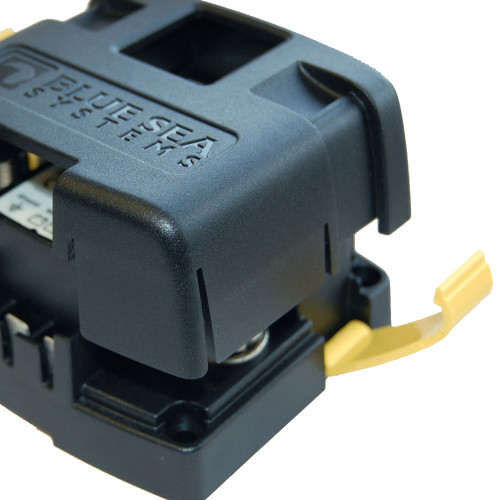

The relay features a clip-on cover that protects and insulates terminal connections, ensuring their durability and safety. The tin-plated copper studs provide maximum corrosion resistance, extending the lifespan of the relay. With a 7/8" (22.22mm) stud length, it can accept multiple cable terminals, and it includes 1/4" x 0.031" male quick connect terminals for ground, remote LED, and starting interrupt.
It is important to note that this product contains chemicals, such as di(2-ethylhexyl)phthalate (DEHP), which may be harmful and should be handled with care. For the most accurate and up-to-date information, it is recommended to refer to the manufacturer's documentation or website.
Highlights:
- Versatile and reliable automatic charging relay
- Temporary isolation of house loads during engine cranking
- Automatically combines battery banks during charging and isolates them under discharge
- Supports 12V and 24V systems with auto-ranging voltage input
- IP67 waterproof rating for marine applications
- Ignition protected for safe installation on gasoline-powered boats
- Remote LED output indicates relay state
- LED light illuminates when batteries are combined
- Supports high-output alternators of up to 120 Amperes
- Compatible with alternators, battery chargers, and solar panels
- Hermetically sealed contacts provide moisture protection
- Clip-on cover protects and insulates terminal connections
- Tin-plated copper studs offer maximum corrosion resistance
