Lenco Marine - Airboat Trim Tab Kit - With Switch, 9" x 14"

Precision Engineering for Airboat Stability and Control

Experience unmatched control and stability with the Lenco 9" x 14" Airboat Trim Tab Kit. Exclusively designed for airboats, this trim tab system enhances your vessel's performance, providing a smoother and more efficient ride, whether navigating shallow waters or cruising on land.

Key Benefits and Uses

Lenco’s Airboat Trim Tab Kit is built to deliver superior performance:

• Eliminates Porpoising: Ensures a smoother ride by reducing unwanted boat oscillation.
• Maximized Plate Movement: Unique mounting design allows for maximum trim tab movement.
• Safe Operation: Designed to hold tabs in an upward position when running in shallow water and on land.
• Durable Construction: Made from 12-gauge 304 stainless steel for longevity and reliability.
• Fast Response: Electric actuators provide precise control for optimal trim adjustments.
• Easy Installation: Features Plug & Play Deutsch connections for straightforward setup.
• Fully Submersible: Built to withstand marine environments.

Kit Contents

This comprehensive kit includes everything needed for installation:

• Trim Tab Plane: 1 each of 12-gauge 304 stainless steel trim tab plane.
• Actuator: 1 each of #15055-001 XD actuator with 6' lead and Deutsch plug.
• Wiring Harness: 1 each of #30133-002 14' actuator extension wiring harness.
• Mounting Bracket: 1 each of upper mounting bracket with gland seal.
• Manual: Lenco owner's/installation manual.
• Mounting Hardware: All necessary stainless steel mounting hardware.

Technical Specifications

• Trim Tab Kit: Airboat
• Blades: 12-gauge stainless steel
• Finish: Smooth

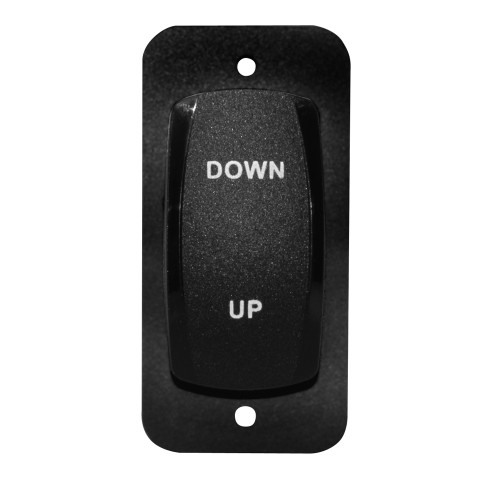

• Switch Kit: Sold separately
• Class: Fuel efficient
• Compliance: CE certified
• Compatibility: Suitable for any boat
• Manufactured In: Stuart, Florida, U.S.A.

General Dimensions

• Trim Tab Size: 9 inches x 14 inches
• Hinge Pin Diameter: 1/8 inch
