Reliable 12V to 24V Conversion for Marine Applications

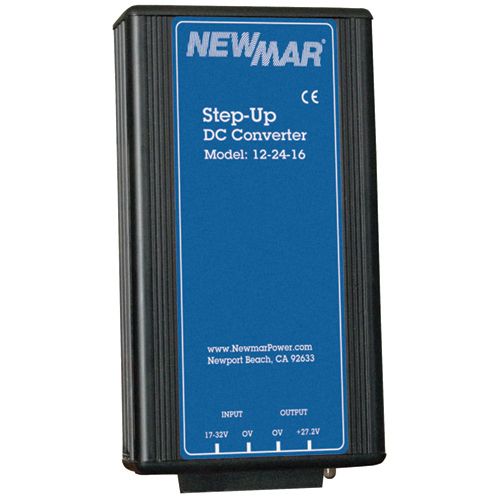

The Newmar Power Step-Up DC-DC Converter is the ideal solution for managing dual-voltage systems on marine vessels. Designed to convert 12V DC power to a stable 24V output, this converter eliminates the need for a dedicated 24V battery and charging system. Its robust design ensures efficient power delivery, making it a reliable choice for marine electronics that perform better on 24V power sources.

The Standard, Non-Isolated Series is specifically engineered for negative ground systems where the 12V input and 24V output share a common ground. Available in 7, 16, and 25 amp output variations, this series provides dependable performance while incorporating advanced safety features such as voltage spike suppression, automatic thermal shutdown, and current limiting.

Technical Specifications

• Input Voltage: 10 - 15V DC
• Output Voltage: 27.2V DC ±5% under extreme conditions
• Ripple: <100mV P-P
• Regulation: ±5% Line/Load
• Duty Cycle:Intermittent: 2 minutes at 20% duty
• Continuous: 24-hour operation at 100% duty
• Operating Temperature: -25°C to 30°C (derates linearly from 30°C to 0% at 80°C)
• Efficiency: 93% (typical)

Durable Construction for Harsh Marine Environments

• Constructed from anodized aluminum and glass-filled polycarbonate
• Resistant to dust, water, and impacts (IP533 rating)
• Front panel terminal block for easy installation
• Green LED output indicator for operational status

Highlights

• Converts 12V DC power to 24V DC for marine applications
• Ideal for electronics that require stable 24V operation
• Available in 7, 16, and 25 amp models
• Features automatic thermal shutdown, voltage spike suppression, and current limiting
• Efficient power conversion with 93% efficiency
• Compact and durable design for marine environments

Variations List

• 12-24-16 - 16 Amp Output
• 12-24-25 - 25 Amp Output

The Newmar Power Step-Up DC-DC Converter is a dependable and efficient solution for maintaining a stable 24V power source in marine environments. Its rugged design and advanced protective features make it a reliable choice for various marine electrical applications.
