Lenco Marine - 101XD Extreme Duty Actuator

Power and Precision for Heavy-Duty Marine Applications

The Lenco 101XD Extreme Duty Actuator is engineered to deliver exceptional power and reliability for demanding marine environments. Designed for use with HD, XD, High Performance, and Super Strong tabs, this actuator provides the ultimate in durability and performance. Its robust construction and advanced features ensure precise control and long-lasting functionality, making it an essential component for any serious marine enthusiast.

Unrivaled Features for Enhanced Marine Operations

• Instant Response: Experience immediate feedback with electric actuators that provide precise and rapid control of your marine vessel.
• High-Impact Construction: Made from glass fiber-filled, ultraviolet-resistant nylon material, combined with 316 super buff stainless steel tubing for maximum durability.
• Advanced Sealing Technology: Features an Anti Extrusion Ring (AXR) seal stabilization system and integrated wiper seal at the actuator base to prevent water intrusion.
• Enhanced Strength and Stability: Incorporates a stronger top cap and mounting clevis design, along with improved pressure-tight torx screws.
• Efficient Motor Design: The high-torque actuator motor can effortlessly push up to 500 pounds, providing twice the power compared to standard hydraulics.

Technical Specifications

• Stroke Length: 2.25 inches

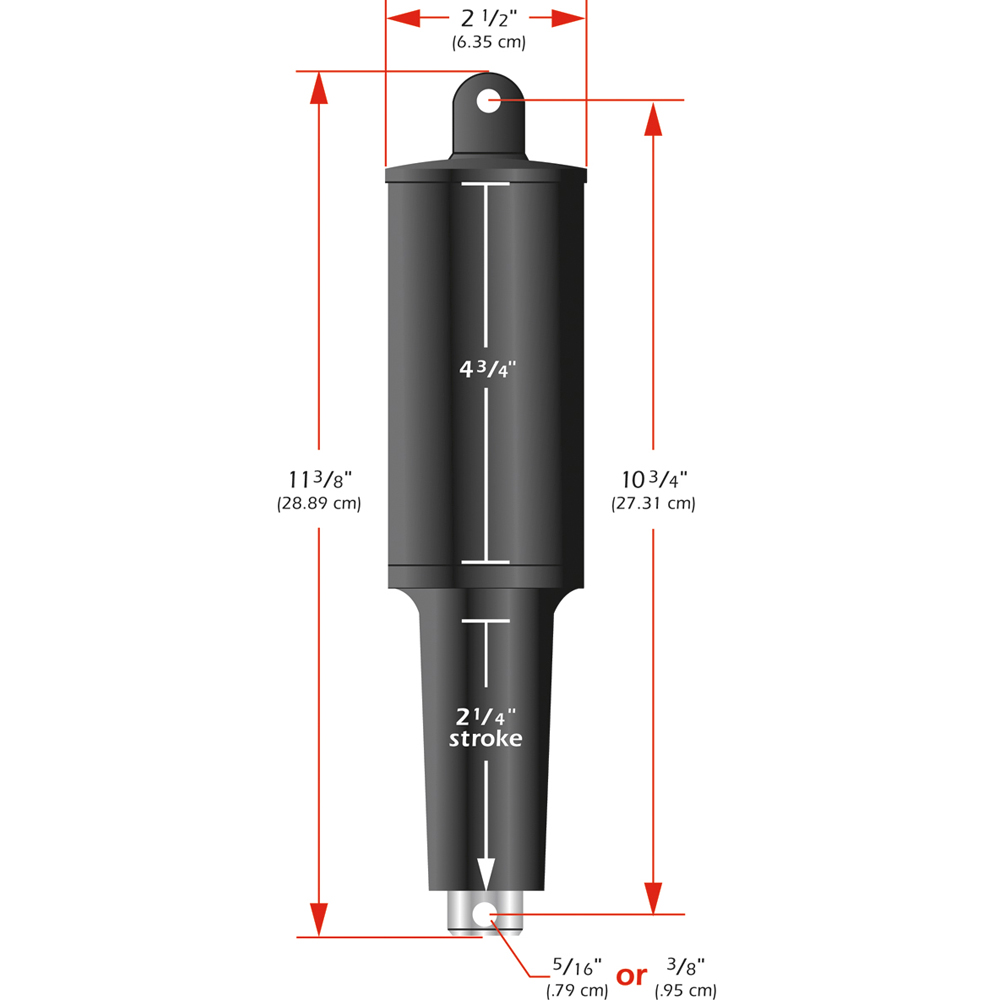

• Overall Length: 11 3/8 inches (tip to tip)
• Voltage Options: 12V and 24V
• Mounting Hardware: Available in 5/16" and 3/8" sizes
• Cable Length: 6 feet

Optimized for Marine Excellence

• Ballscrew Design: Delivers reliable and powerful performance, ensuring consistent operation in all marine conditions.
• Waterproof Connections: Utilizes "Plug & Play" Deutsch connectors to eliminate the risk of water intrusion and ensure secure connections.
• Thrust Bearing Design: Molded-in brass thrust bearing ensures smooth and consistent operation.

Compact and Durable Dimensions

• Overall Length: 11 3/8 inches, designed for easy integration into various marine setups while maintaining top-tier performance.

Premium Finishes

• Standard Finish: Built to withstand the harsh marine environment while maintaining a sleek and professional appearance.

Product Variations

• 15055-001 Voltage 12V / Size 5/16": Standard 12V version with 5/16" mounting hardware for general applications.
• 15056-001 Voltage 12V / Size 3/8": Enhanced 12V version with 3/8" mounting hardware for added stability.
• 15062-001 Voltage 24V / Size 5/16": High-performance 24V version with 5/16" mounting hardware for applications requiring higher voltage.
• 15063-001 Voltage 24V / Size 3/8": Advanced 24V version with 3/8" mounting hardware for maximum strength and reliability.
