Sleek and Durable Low Profile Hatch for Marine Applications

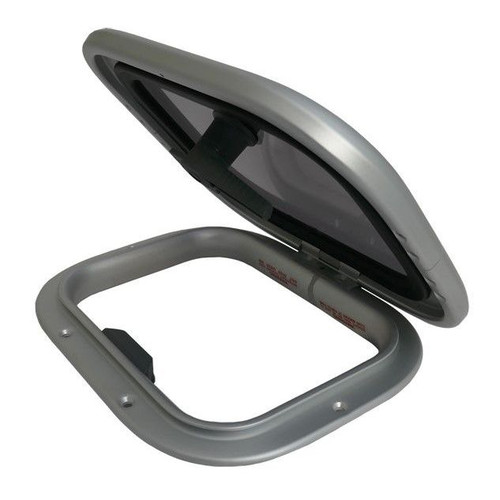

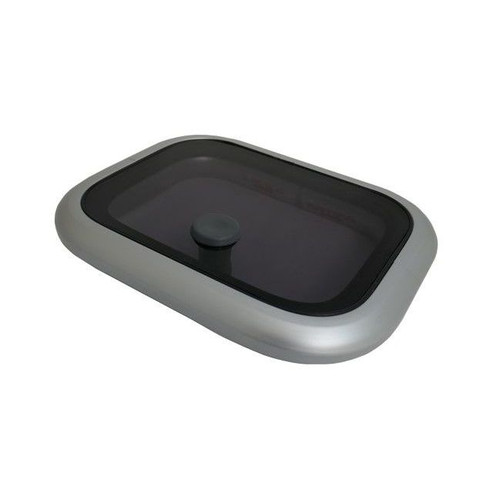

The Lewmar Size 03 Low Profile Hatch Flange Base is designed to provide superior functionality and style for both power and sailboats. With its soft styling and smooth, modern aesthetics, this hatch is a perfect fit for marine vessels requiring a reliable and visually appealing deck installation.

Ideal for ventilation, this hatch can be mounted on various locations, including decks, coachroofs, cockpits, and transoms, as it meets CE Area 2 standards. The unique sealing system ensures a secure fit while also allowing for easy acrylic replacement, adding to its long-term value.

Technical Specifications

• Support System: Self-supporting for easy operation
• Lower Frame Thickness: 9/16 inches
• Acrylic Color: Smoke Gray for enhanced UV protection and visibility
• Hatch Weight: 3.5 lbs
• Acrylic Window Thickness: 5/16 inches

Product Dimensions

• Overall Length (X): 9 11/16 inches
• Overall Width (Y): 11 7/8 inches
• Overall Height (Z): 1 inch
• Corner Radius (R): 2 7/8 inches
• Cut-Out Length (X1): 6 15/16 inches
• Cut-Out Width (Y1): 9 1/8 inches
• Cut-Out Radius (R1): 1 11/16 inches

Highlights

• Low-profile design enhances the sleek appearance of marine vessels
• Versatile mounting options suitable for decks, coachroofs, cockpits, and transoms
• High-quality sealing system ensures water resistance and easy acrylic replacement
• Durable smoke gray acrylic window for optimal light transmission and protection
• Self-supporting system simplifies operation and enhances usability

This Lewmar hatch combines performance, aesthetics, and longevity, making it a premium choice for marine applications. Whether you're upgrading your boat or installing new hatches, this model ensures durability and efficiency in any marine environment.
