Egis Mobile Electric - XD Series Single Flex 2 ACR-Relay - DTM Connector

Revolutionize Your Marine Electrical System with Egis XD Series

The Egis XD Series Single Flex 2 ACR-Relay is engineered to provide a significant reduction in mounting space and product weight. Its advanced bi-stable solenoid design and multiple solenoid assemblies replace common electrical system layouts, offering an efficient and reliable solution for marine applications. This relay ensures dependable battery management by sharing charging between two batteries and isolating them when no charge sources are present.

General Description

The Egis XD Series Single Flex 2 ACR-Relay seamlessly integrates into marine electrical systems, providing unparalleled versatility and robust construction. It is ideal for setups with multiple engines or independent charge systems, supporting efficient charge management and preventing dead-start batteries. Expandable with link and cross-link busbars, it supports additional dual, triple, or single XD relays, making it perfect for complex battery systems.

Key Features and Benefits

• Space and Weight Efficiency: Reduces mounting space and product weight by 35-75% compared to traditional systems.
• Robust Construction: Sealed to IP67/IP6K9K standards, with high-temperature electronics and stainless steel hardware.
• Intuitive Manual Control: Simplifies operation and enhances awareness of relay state with a 3-position manual override.
• Simple Programmability: Dip switches allow flexible relay function customization, making it easy for OEMs and installers.
• Energy Efficient: Significantly reduces off-state current draw by 90-95% compared to competitive products.
• Easy Integration: Compatible with legacy competitor products, with plug-and-play installation.

Bullet Points Summary

• Space-efficient design reduces mounting space and weight
• Robust construction with IP67/IP6K9K sealing
• Intuitive 3-position manual override
• Easy dip switch programming
• Low off-state current draw
• Compatible with legacy competitor products
• Expandable with link and cross-link busbars

Technical Specifications

• Total Continuous Current Amps: 500
• Max Cranking Current (Amps): 1500
• Mechanical Switching Life: 1,000,000 cycles
• Voltage Range (VDC): 8-36
• Off-State Current Draw (mA): 1.3
• State Change Current: 5A @ 12 VDC; 3A @ 24 VDC

Focal Features

LED Status Display

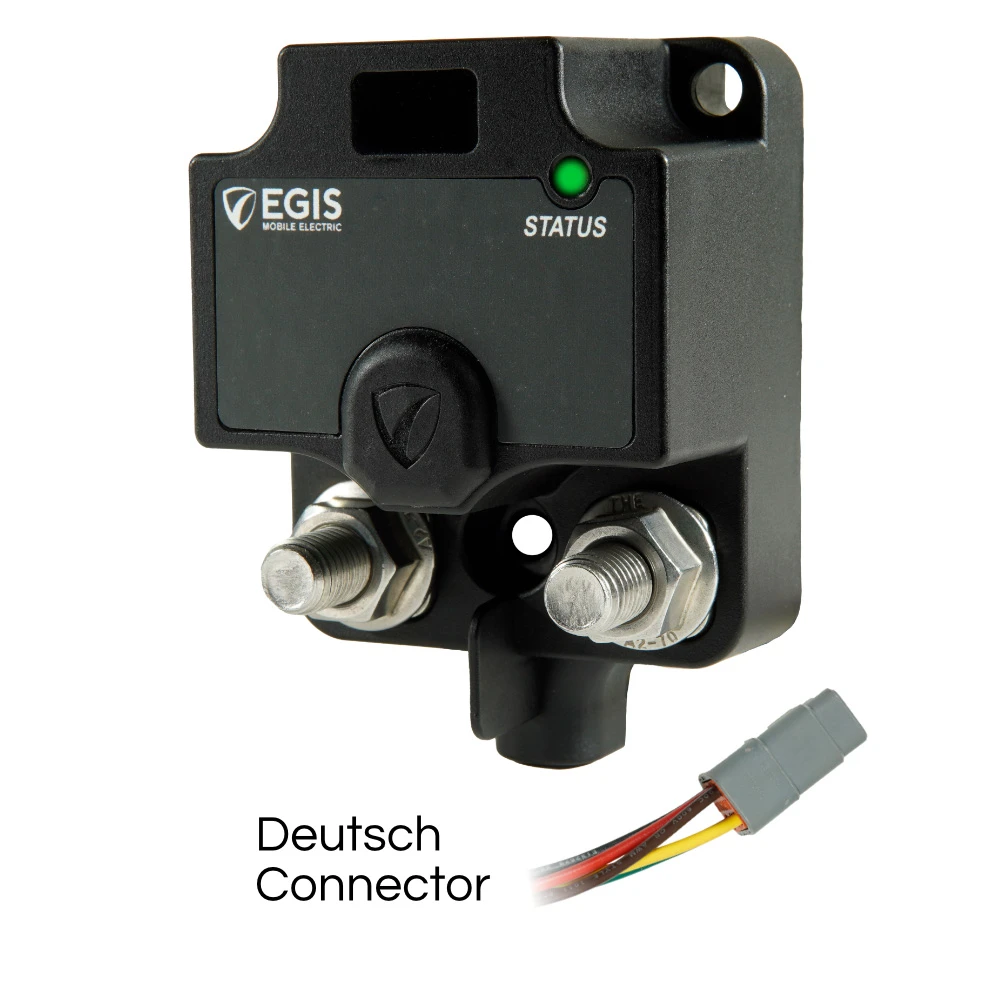

The front-facing LED indicator provides clear visual status, with a remote LED replicating the on-device LED for easy monitoring.

3-Position Manual Override

Allows for forcing each relay open or closed, with the option to lock the relay in either condition for added control.

40 Circuit Label Sheet Included

Features weatherproof labels for easy circuit and relay identification, with blank labels available for custom applications.

Protective Cover Included

Protects terminal studs and cable terminal edges from accidental shorts, ensuring safe operation.

Stainless Hardware

Quality stainless steel studs and self-locking flanged nuts resist corrosion, ensuring long-term reliability.

Programmable via Dip Switches

Located under the protective cover, the dip switches offer easy customization for a wide variety of applications.

Smaller Footprint

High amp rating in a compact package reduces installation space requirements.

Integrated Vent

High-quality Gortex vents regulate internal device pressure, preventing moisture entry and ensuring long product life in harsh environments.

Dimensions

• Size (L x W): To be provided if available

The Egis XD Series Single Flex 2 ACR-Relay with Knobs - DTM Connector is an essential component for efficient and reliable battery management in marine applications. Its innovative design, robust construction, and user-friendly features make it the ideal solution for modern marine electrical systems.
