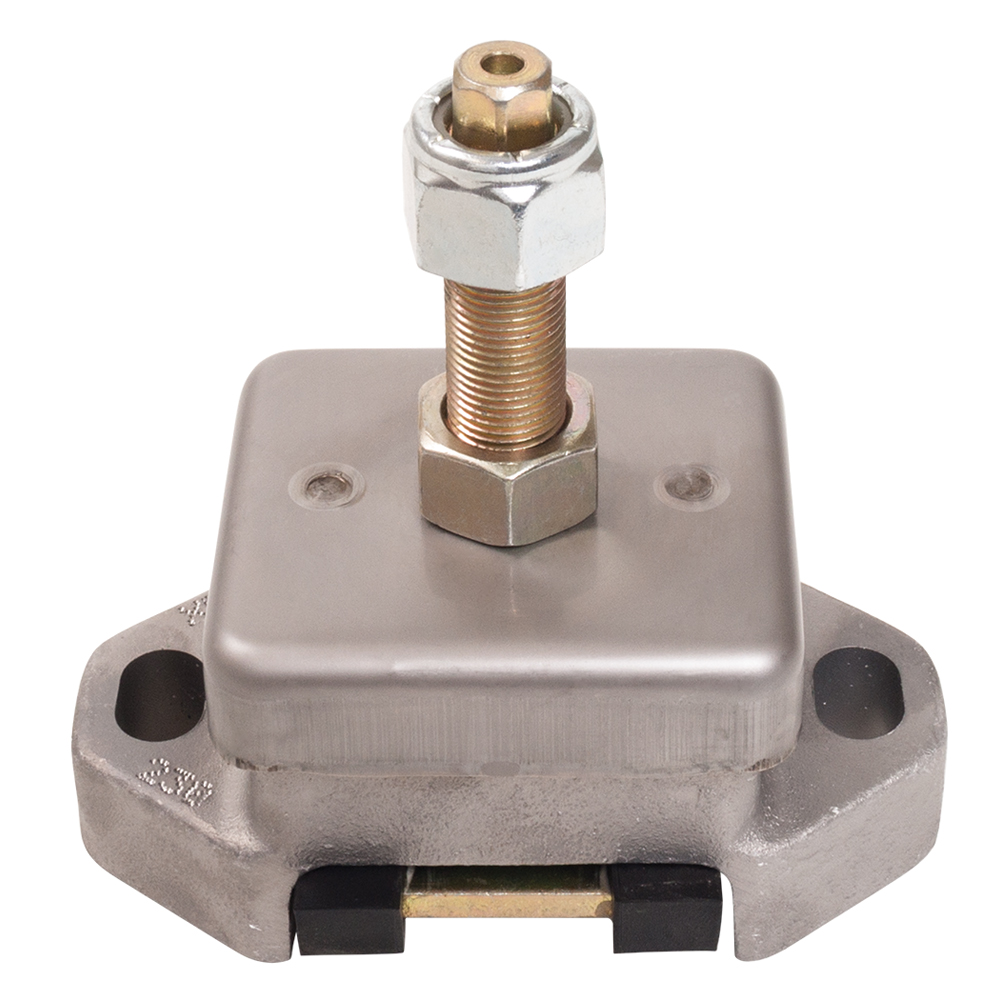

R & D Marine - Engine Mount - With 4" Footprint, 5/8" Stud, 50-175lbs Capacity Per Mount

Anchor Your Power: R & D Engine Mounts for Ultimate Marine Stability

Designed for the Sea, Engineered for Stability: The R & D Marine Engine Mounts set the standard for reliability and durability in marine engineering. With a robust design capable of supporting 50-175lbs per mount, these mounts expertly balance the need to absorb propeller thrust in both directions while isolating drivetrain vibrations from the hull. The fusion of zinc-plated, pasivated steel parts, and a petroleum-resistant oil shield over the rubber components ensures these mounts withstand the harsh marine environment. Preloaded and adjustable, R & D mounts simplify the installation process, allowing for precise drivetrain alignment with slotted mounting holes.

• Able to absorb significant propeller thrust while minimizing vibration transmission to the hull.
• Corrosion-resistant zinc-plated and pasivated steel components enhance longevity.
• Petroleum-resistant oil shield protects rubber components from potential damage.
• Preloaded and adjustable design for reduced engine movement and easy alignment.
• Slotted mounting holes in the base aid in precise and hassle-free installation.

Engine Mount Selection Made Simple

To ensure optimal performance and stability, selecting the right engine mount involves:

1. Calculating the total weight of your engine and transmission.
2. Allocating 60% of this weight to the rear mounts and 40% to the front, then dividing by two to determine capacity needs.
3. Choosing the correct stud diameter and mount footprint for your setup.
4. Selecting a mount that fits within your weight range, ideally in the middle, for best support.

For Example: A system with a combined weight of 590lbs would require specific mounts for the rear and front, ensuring each mount is optimally selected to support the designated weight for balanced performance.

Why Choose R&D Marine Engine Mounts? Specifically crafted for the marine environment, these mounts are designed to handle both the thrust and the tranquility of the sea. Their fail-safe design, coupled with adjustability and preloaded features, ensures your marine engine operates with maximum stability and minimum movement. Equip your vessel with R&D Marine Engine Mounts and set sail with confidence, knowing your engine is secured by the best in marine engineering.
