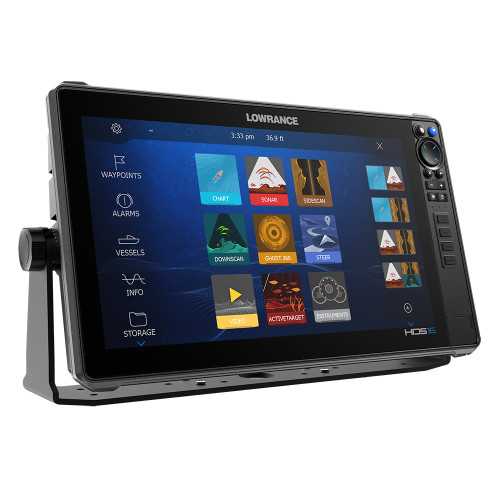

Unveil the Ocean's Secrets: HDS PRO 16 Overview

Dive deeper into marine life with the HDS PRO 16 fishfinder/chartplotter. Witness real-time reactions of fish to your lure using advanced ActiveTarget® 2 Live Sonar, and effortlessly locate fish-rich areas and crucial structures with unparalleled Active Imaging™ HD clarity. Preloaded with C-MAP® DISCOVER OnBoard charts, navigate seamlessly and connect your entire fishing system for a holistic boat control experience.

Inside the Treasure Box

• HDS PRO fishfinder/chartplotter (16-inch display screen)
• Pre-installed C-MAP DISCOVER OnBoard

Features That Make Waves

• 19,000+ US Lakes and 9,400+ Canadian Lakes mapped with C-MAP DISCOVER OnBoard
• Crisp SolarMAX™ HD Touchscreen viewable from every corner

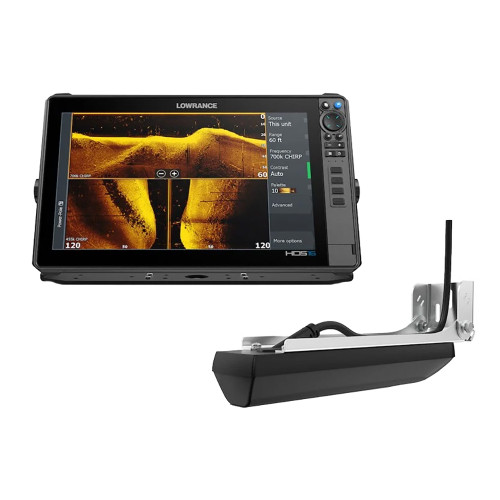

• Active Imaging™ HD compatibility with Lowrance CHIRP, SideScan, and DownScan Imaging™
• Real-time mapping with C-MAP Genesis Live
• Easy controls with large programmable keys and touchscreen functionalities
• NMEA 2000, wireless and Bluetooth connectivity with smartphone alerts

Crystal Clear Display Dynamics

• Backlight: Pure white LED brilliance
• Full HD Resolution: 1920 x 1080
• Wide Viewing Angles: 80° in every direction

Stay Connected, Stay Ahead

• Bluetooth 4.0 with Classic support
• Fast Ethernet Ports: 2 x 100 Mbit for networking up to 6 MFDs
• Internal 802.11b/g/n WiFi and WiFi-1 Module compatibility
• NMEA 2000 Connectivity with 1x Micro-C
• Storage: 2 micro SD cards, up to 32GB

Powering Your Adventure

• Max Power: 4.1A @ 13VDC with full backlight and sonar active
• Typical Consumption: 3.00A @ 13VDC with full backlight and sonar active
• Recommended Fuse: 5A
• Stable Supply Voltage: 10.8-17VDC

Brace All Weathers

• Operating Temperature: 5°F to 131°F (-15°C to 55°C)
• Storage Temperature: 4°F to 140°F (-20°C to 60°C)

GPS Precision

• GPS Channels: 16
• Fast Update rate: 10 Hz

Dive Deeper with Multi-Function Display (MFD)

• Included Cartography: C-MAP Discover OnBoard and Navionics basemap
• Ample Internal Storage: 8.0 GB
• Navigation: 3000 Waypoints, 100 Routes, and 100 Trails with up to 10,000 points per trail
