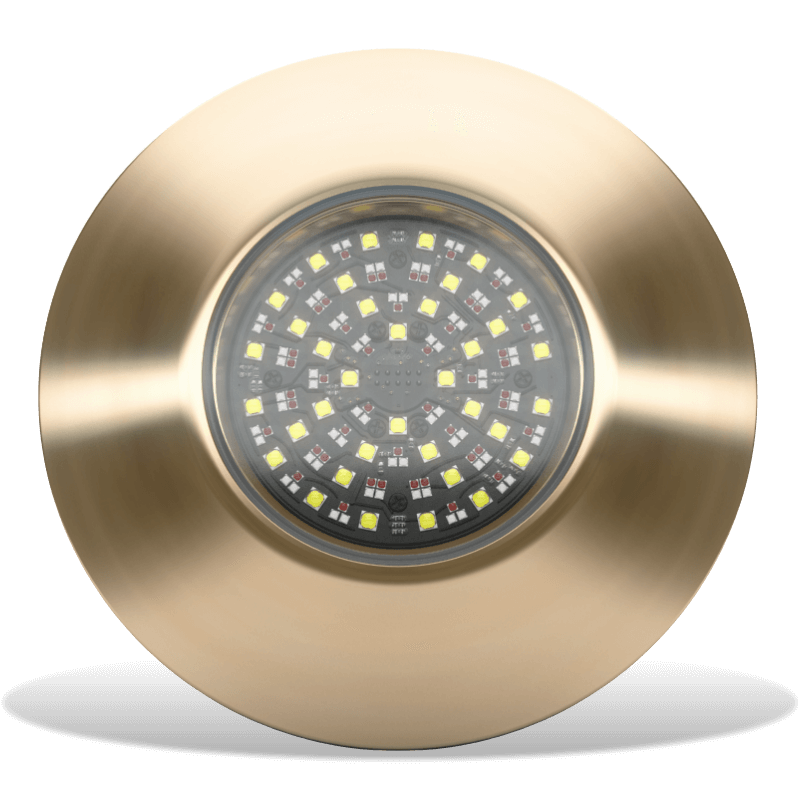

Lumishore - EOS TIX1604 Interchangeable Thru-Hull Underwater Light - RGBW, 17500 Fixture Lumens
Immersive Marine Illumination with the TIX1604 EOS RGBW Underwater Light
The TIX1604 EOS RGBW underwater light delivers unparalleled underwater illumination, designed to enhance marine environments with a vibrant full-color spectrum. With 17,500 verified fixture lumens and an ultra-wide 110° beam angle, this light creates a stunning halo effect for transom, side, or bottom mounting. The fully controllable color-changing system lets you customize colors, modes, and effects directly from your MFD or via the optional Lumishore Display, ensuring versatility and convenience.
Built with durability in mind, the TIX1604 features a marine-grade aluminum bronze housing, offering resistance to harsh underwater conditions. Its interchangeable thru-hull design simplifies servicing by allowing access to the LED array and integrated driver from within the hull.
Cutting-Edge Technical Specifications
- Available LED Colors: EOS Full Color Change (RGBW)
- Lumens: 17,500 verified fixture lumens (white)
- LED Power – HiCOB Array: Yes
- LED Configuration:36 x 10W White LEDs
- 36 x 3W Green LEDs
- 36 x 3W Blue LEDs
- 48 x 3W Red LEDs
- Typical LED Life: Over 50,000 hours
- Beam Angle: 110° ultra-wide coverage
- Driver: Multi-Channel External Driver
- Supply Voltage: 24V DC (AC option available)
- Maximum Current Draw: 6.5A
Robust Dimensions for Versatile Applications
- Approximate Shipping Weight: 9 lbs
High-Performance Finishes
The housing is made of marine-grade aluminum bronze, ensuring resistance to corrosion and durability in challenging marine environments.
Highlights
- Full RGBW color control for endless customization
- Ultra-bright 17,500 fixture lumens for optimal visibility
- 110° beam angle for a wide, even light spread
- Easy-to-use controls through MFD or optional Lumishore Display
- Sound-to-light, strobe, and programmable scene capabilities
- Built for durability with over 50,000 hours of LED life
