High-Performance Marine Searchlight for Optimal Navigation and Safety

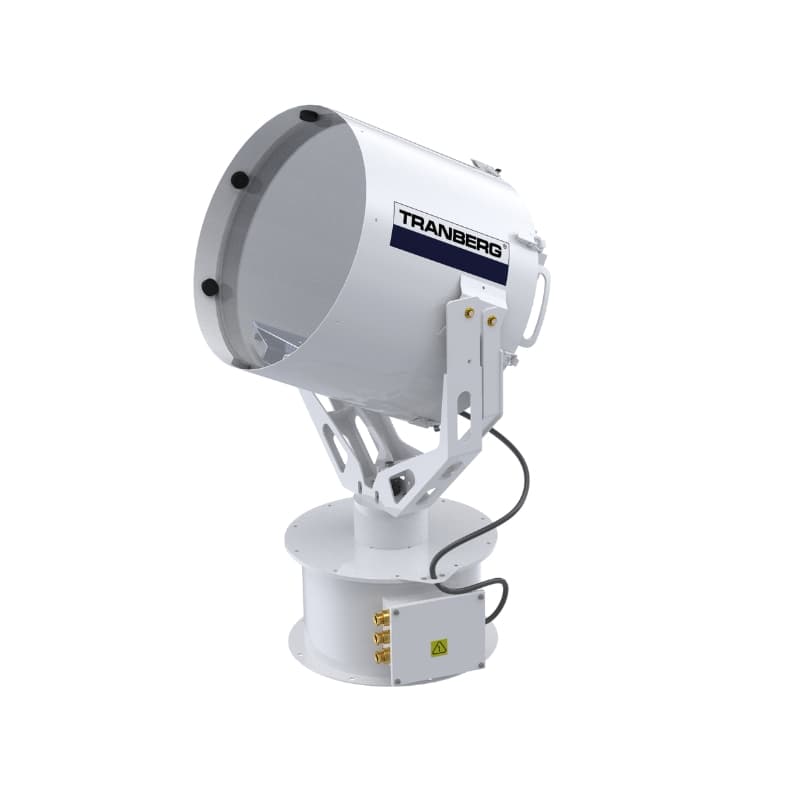

The TEF 2650 Xenon Searchlight is a powerful and reliable lighting solution designed specifically for demanding marine applications. With a robust construction, exceptional light output, and advanced features, it ensures superior visibility in challenging conditions, making it an indispensable tool for safe navigation and operations.

Outstanding Illumination with Xenon Technology

Equipped with a 3000W Xenon light source, the TEF 2650 delivers an impressive luminous flux of 140,000 lumens, ensuring long-range visibility of up to 11,500 meters at 1 lux. Its sharp white light, at a color temperature of 6000K, cuts through darkness and adverse weather conditions with ease, enhancing safety and precision. The light beam can be adjusted between 3° and 8° angles for focused or wide-area illumination, providing versatility for various applications.

Durable and Marine-Grade Construction

Built for rugged marine environments, the TEF 2650 features an AISI 304 stainless steel housing with a durable powder-coated finish. This construction ensures resistance to corrosion and harsh conditions, while the IP56 rating guarantees protection against water and dust ingress. The toughened soda-lime glass dome further enhances durability and longevity.

Advanced Bus-Controlled System with Motorized Focus

The integrated bus-controlled system allows precise and remote operation, while the motorized focus function ensures optimal control over the light beam for various operational needs. With a 370° pan and tilt range of +20° to -30°, this searchlight offers extensive coverage and flexibility in use.

Technical Specifications

• Rated Power: 3000W
• Voltage: 230V AC
• Operating Frequency: 50/60 Hz
• Luminous Flux: 140,000 lumens
• Beam Angles: 3° to 8°
• Color Temperature: 6000K
• Range at 1 Lux: 11,500 meters
• IP Rating: IP56
• External Color: White (RAL 9010)
• Reflector Material: Glass
• Glass/Dome Material: Toughened soda-lime glass
• Pan Range: 370°
• Tilt Range: +20° to -30°

Product Dimensions

• Weight: 175 kg

Finishes

The searchlight features a powder-coated finish over AISI 304 stainless steel for enhanced durability and corrosion resistance, ensuring longevity in harsh marine environments.

Highlights

• High-performance Xenon light source for superior visibility
• Long-range illumination up to 11,500 meters at 1 lux
• Durable stainless steel construction with a toughened glass dome
• Adjustable beam angles and motorized focus for versatile applications
• Bus-controlled system for precise and remote operation
• Designed specifically for marine and offshore use

This searchlight is engineered to meet the rigorous demands of marine professionals, providing unmatched performance, reliability, and durability in the most challenging environments.
