Exceptional Illumination for Marine Applications

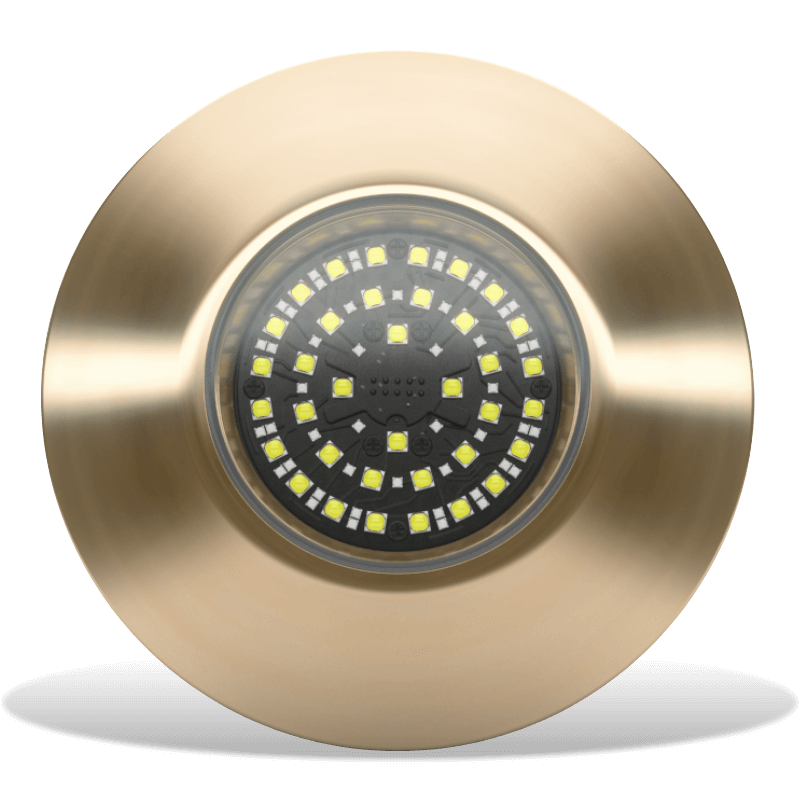

The TIX804 SUPRA Thru-Hull Light delivers a powerful 13,500 fixture lumens and an ultra-wide 110° beam angle, casting an impressive halo of light around your vessel. Designed for marine enthusiasts seeking optimal brightness and versatile lighting, this system combines high output with dual-color functionality. Easily switch between blue and white lighting to create the perfect ambiance or enhance visibility in various marine conditions. With the ability to strobe, fade, and adjust brightness, the TIX804 ensures a dynamic and customizable lighting experience.

Engineered for ease of use, this light can be controlled via the SUPRA i-Connect Hub & Switch or directly through your compatible multifunction display (MFD) using the optional SUPRA Bridge Module. Built for convenience, the TIX804 features an internal LED array and driver, allowing for simple installation and servicing from inside the hull. Its robust construction and flexible mounting options make it ideal for transom, side, or bottom installations.

Technical Specifications

• Available LED Colors: Dual-color (Blue & White)
• Fixture Lumens: 13,500
• Total Lumens (Blue & White): 30,375
• Beam Angle: 110°
• LED Configuration: White - 36 x 10W, Blue - 48 x 3W
• Typical LED Life: 50,000+ hours
• Driver: Multi-channel internal driver
• Supply Voltage: 12/24 V DC (AC option available)
• Maximum Current Draw: 8.8A/4.4A
• Housing Material: Marine-grade aluminum bronze
• Control Options: SUPRA i-Connect Hub & Switch or MFD with SUPRA Bridge Module
• Lighting Modes: Adjustable brightness, strobe, fade, and synchronized options

Product Dimensions

This thru-hull light is designed for seamless integration into your vessel’s structure, ensuring a streamlined appearance and durable performance in marine environments.

Finishes

The TIX804 is crafted with a marine-grade aluminum bronze housing, offering superior resistance to corrosion and wear in harsh marine conditions.

Highlights

• Dual-color lighting: Blue and White
• 13,500 verified fixture lumens for exceptional brightness
• Ultra-wide 110° beam angle for expansive light coverage
• Adjustable brightness, fade, and strobe modes
• Internal LED array and driver for simplified servicing
• Compatible with i-Connect Hub & Switch or MFD controls
• Durable marine-grade aluminum bronze construction
