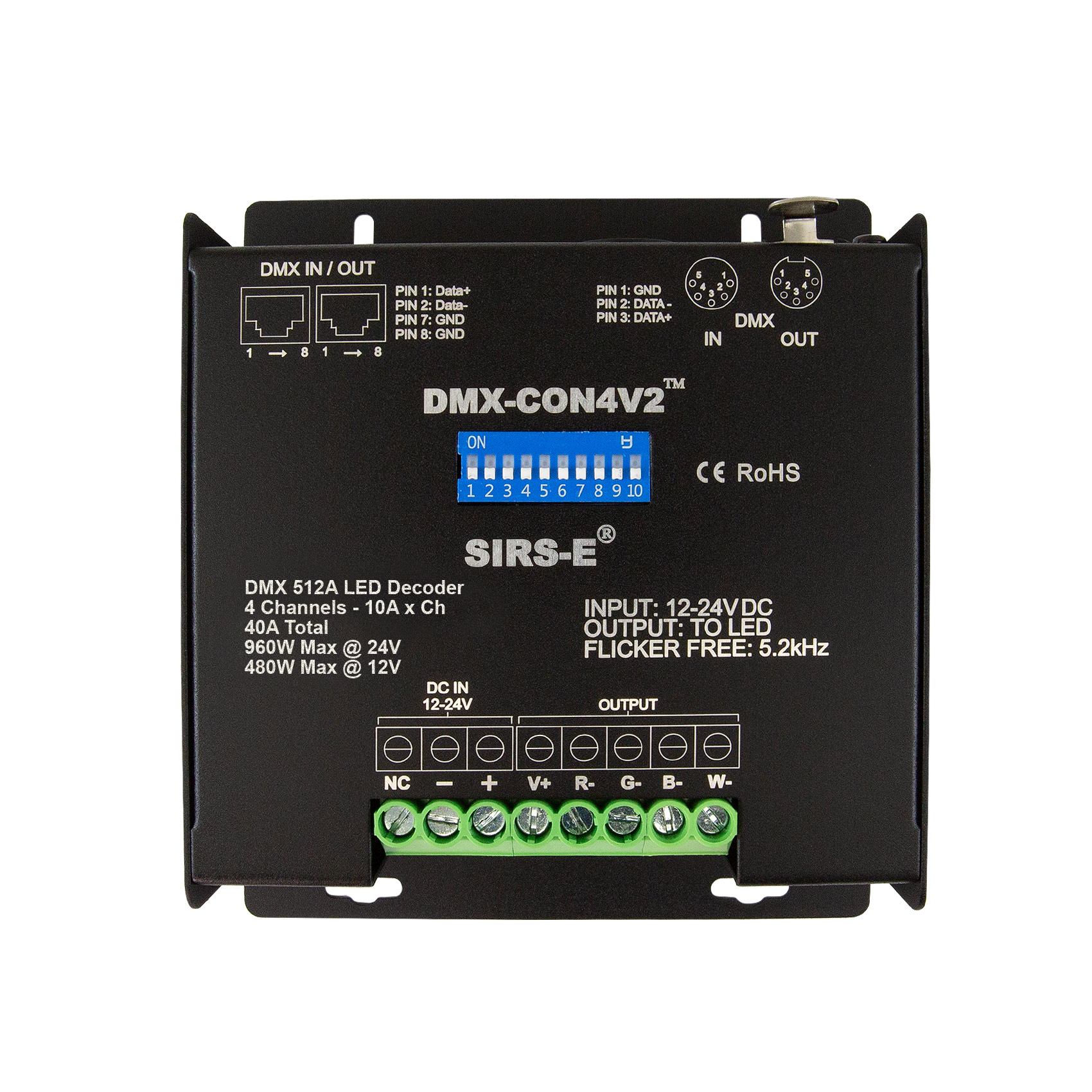

The SIRS-E DMX-CON4V2 LED DMX Decoder is a versatile and powerful solution for controlling RGB and RGBW LED lighting. Designed with high-performance A-Grade RGBW LED strips in mind, this decoder offers precise control and flicker-free operation, making it suitable for video applications without camera interference. With its ability to manage up to 4 channels, high current capacity, and DMX 512/1990 protocol compliance, the DMX-CON4V2 provides advanced functionality for professional lighting setups.

Key Technical Features

• DMX Protocol: Fully compatible with DMX 512/1990, ensuring seamless integration with DMX-controlled lighting systems.
• Output Channels: 4 channels with a maximum of 10A per channel.
• Power Capacity:480W at 12V DC.
• 960W at 24V DC.
• Flicker-Free Performance: Operates at 5.2 kHz, ideal for video applications with no visible flickering.
• Brightness Control: Offers 256 levels of intensity per channel for precise color control.
• Input Voltage: 12-24V DC for flexible power compatibility.
• Output: Compatible with LED strips and modules, supporting single-color to RGBW configurations.

Product Features

• Supports high amp draw for RGBW LED strips, making it suitable for demanding applications.
• Allows for asynchronous color-changing effects for dynamic lighting designs.
• Freely adjustable DMX address range from 1 to 512.
• Modular design compatible with a variety of LED modules and configurations.
• Enables full-color driver control for custom lighting scenarios.

Highlights

• Controls up to 4 channels of LED strips, modules, or fixtures.
• High power handling with up to 960W at 24V DC.
• Flicker-free operation at 5.2 kHz for professional-grade video applications.
• Compliant with DMX512/1990 for reliable and standardized control.
• Compact and robust design suitable for both residential and commercial installations.

The SIRS-E DMX-CON4V2 LED DMX Decoder is the ideal choice for advanced lighting applications that require precise control, high power, and seamless integration with DMX systems. Perfect for stage lighting, architectural installations, and video production environments.
